konoma parses, lays out and draws every Mermaid diagram itself — no browser,
no Node, no external renderer, nothing to install. A ```mermaid fence
in a Markdown file becomes a real picture in the terminal, and a standalone
.mmd file opens full screen.
Every picture below was produced by that same renderer, from the fences in
samples/mermaid.md,
at the shipped defaults (ui.mermaid_theme = "dark", ui.mermaid_curve = "basis").
The backgrounds are transparent — in a terminal the diagram sits on your own
background; here it sits on a dark plate.
Two looks, one config line
Section titled “Two looks, one config line”The default look is mermaid’s own: nothing changes unless you ask for it. One line switches flowcharts and state diagrams to konoma’s own orthogonal router and designed palette:
[ui]mermaid_routing = "konoma-orthogonal"In that mode every edge bends only at right angles with sharp corners, decision
diamonds become chamfered rectangles so an edge can land on a flat face, a
straight-through edge across ranks aligns into a single unbent lane, and the
diagram switches to konoma’s own palette — dark node fills, dashed subgraph
frames, and classDef/style colors carried consistently onto a node’s border,
its edges and its label (so ui.mermaid_theme has no effect there).
It applies to flowchart and stateDiagram-v2 only. Those two are shown
twice below — konoma-orthogonal first, then the default splines — and the
other 21 kinds are shown once, because routing never reaches them.
See Configuration for every Mermaid option, and Previews in depth for the keys that zoom, pan and open a diagram full screen.
What the settings change
Section titled “What the settings change”Three [ui] options change how a diagram is drawn, and a diagram can override
one of them from inside its own source. Every picture in this section is one of
the samples further down this page, redrawn with a single thing moved — so
anything you see differing came from the thing the caption names.
A few rules hold across all of them. mermaid_curve is read by a flowchart’s own
edges and by nothing else. Both mermaid_curve and mermaid_theme are ignored
under konoma-orthogonal: that mode has no curve, only right-angle segments, and
it carries its own designed palette. A theme’s background is always transparent,
so a diagram blends with whatever your terminal’s background is.

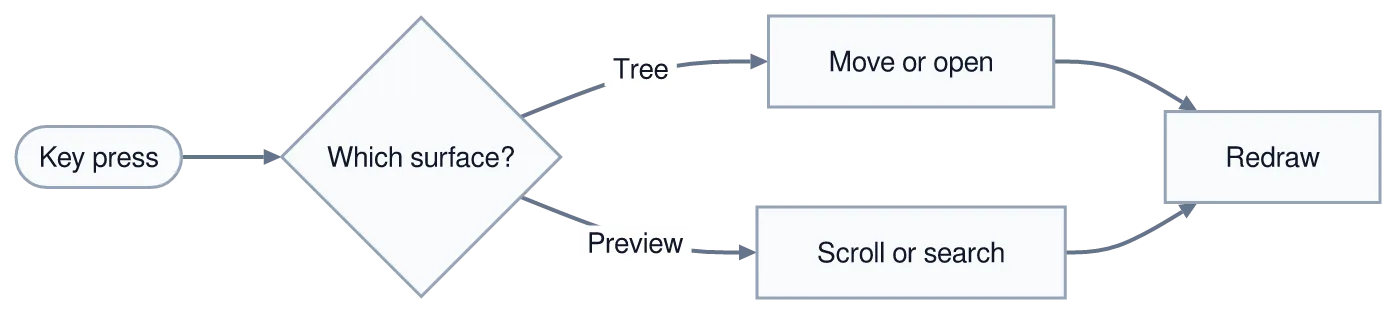

01 — the keypress flowchart
Section titled “01 — the keypress flowchart”The plainest of the three: a stadium, a decision diamond, two branches and a join. It is where the basic shapes read most clearly.
mermaid_routing
Section titled “mermaid_routing”
konoma's own router: every edge bends only at 90° and meets a border head-on, decision nodes become chamfered rectangles, and the diagram is drawn in konoma's own designed palette.
The shipped default — mermaid’s own layout, with every edge following the curve mermaid_curve names.
Direction
Section titled “Direction”A flowchart states its direction as the header’s own keyword — flowchart LR,
TB, RL or BT. The routing rules are the same in every direction: RL and
BT are the exact mirror of LR and TB along the flow axis, while which side
a branch takes is unchanged. The konoma-orthogonal design references 2b and
2c are the same graph in LR and TB for exactly that reason.

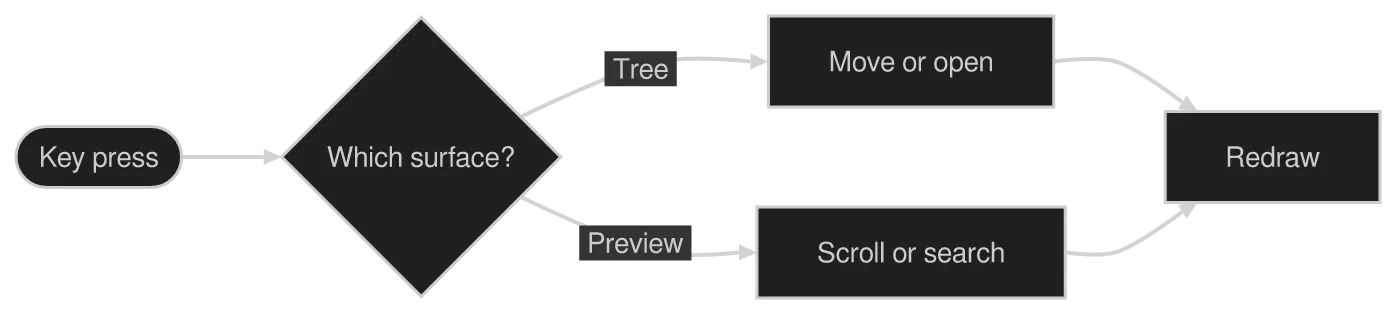

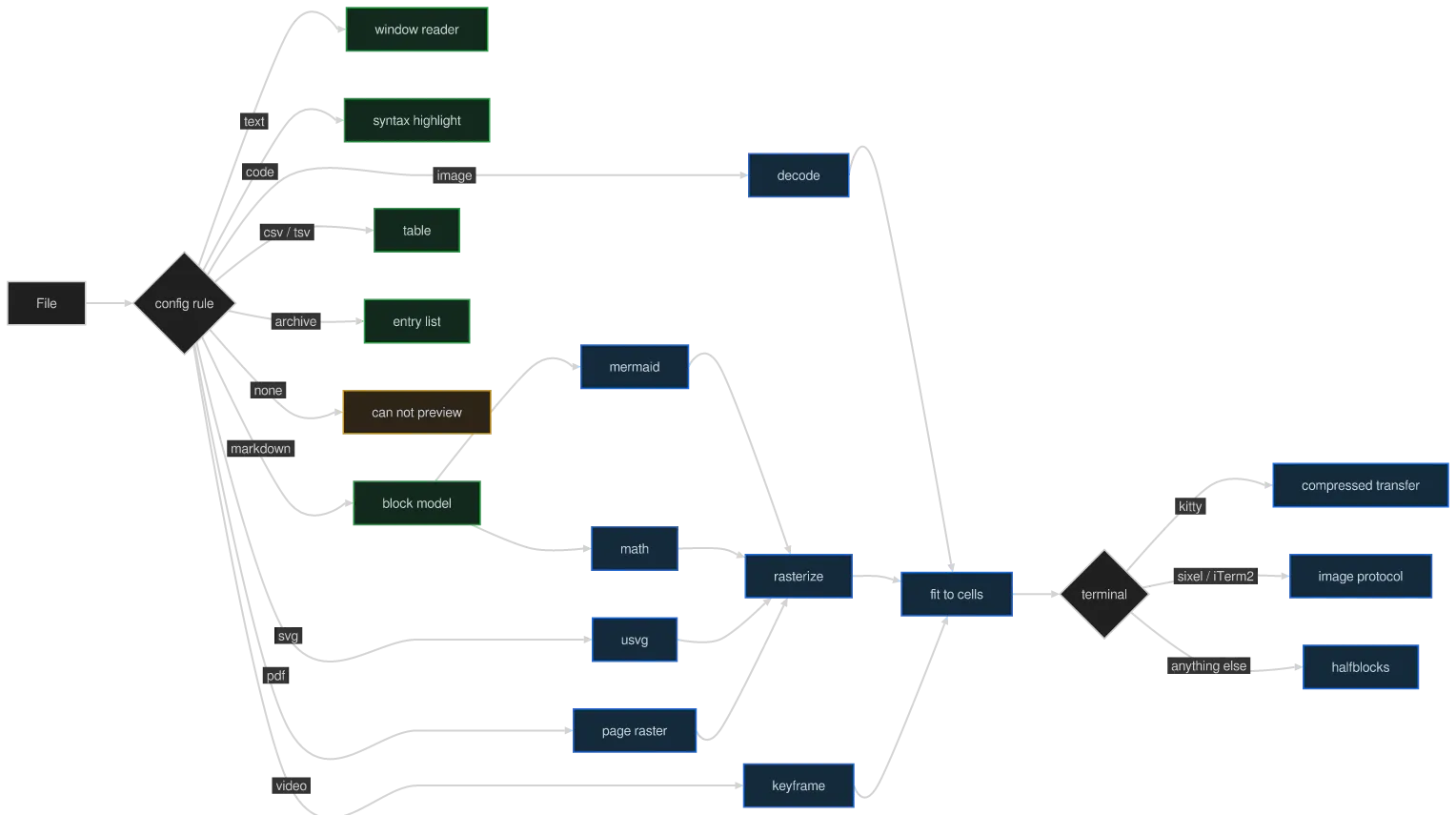

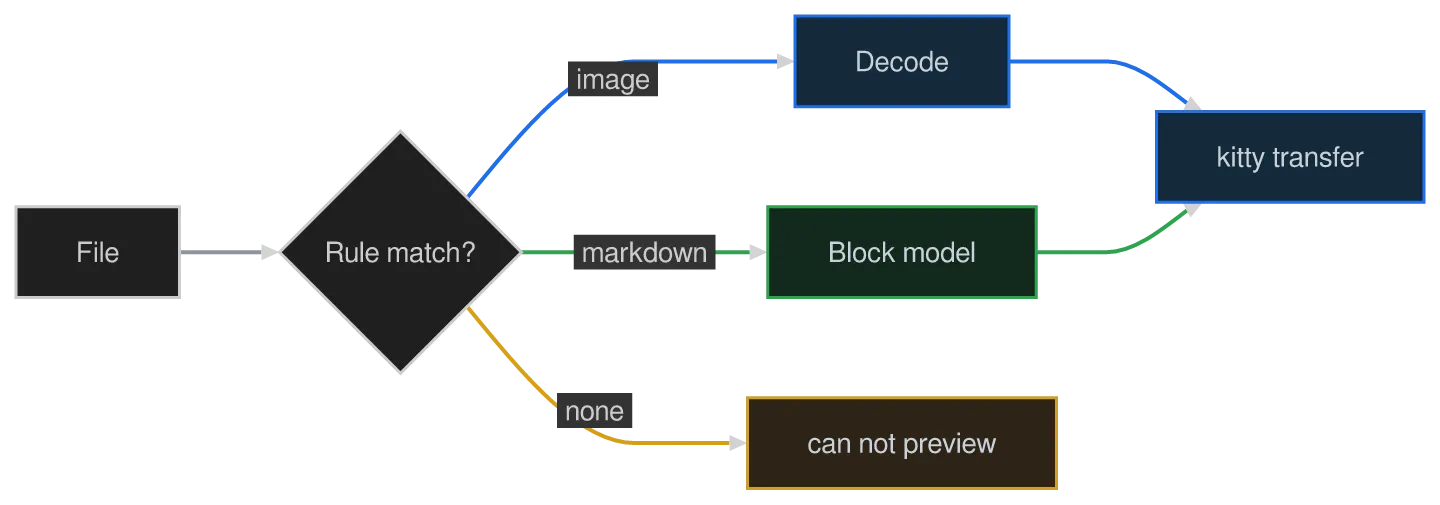

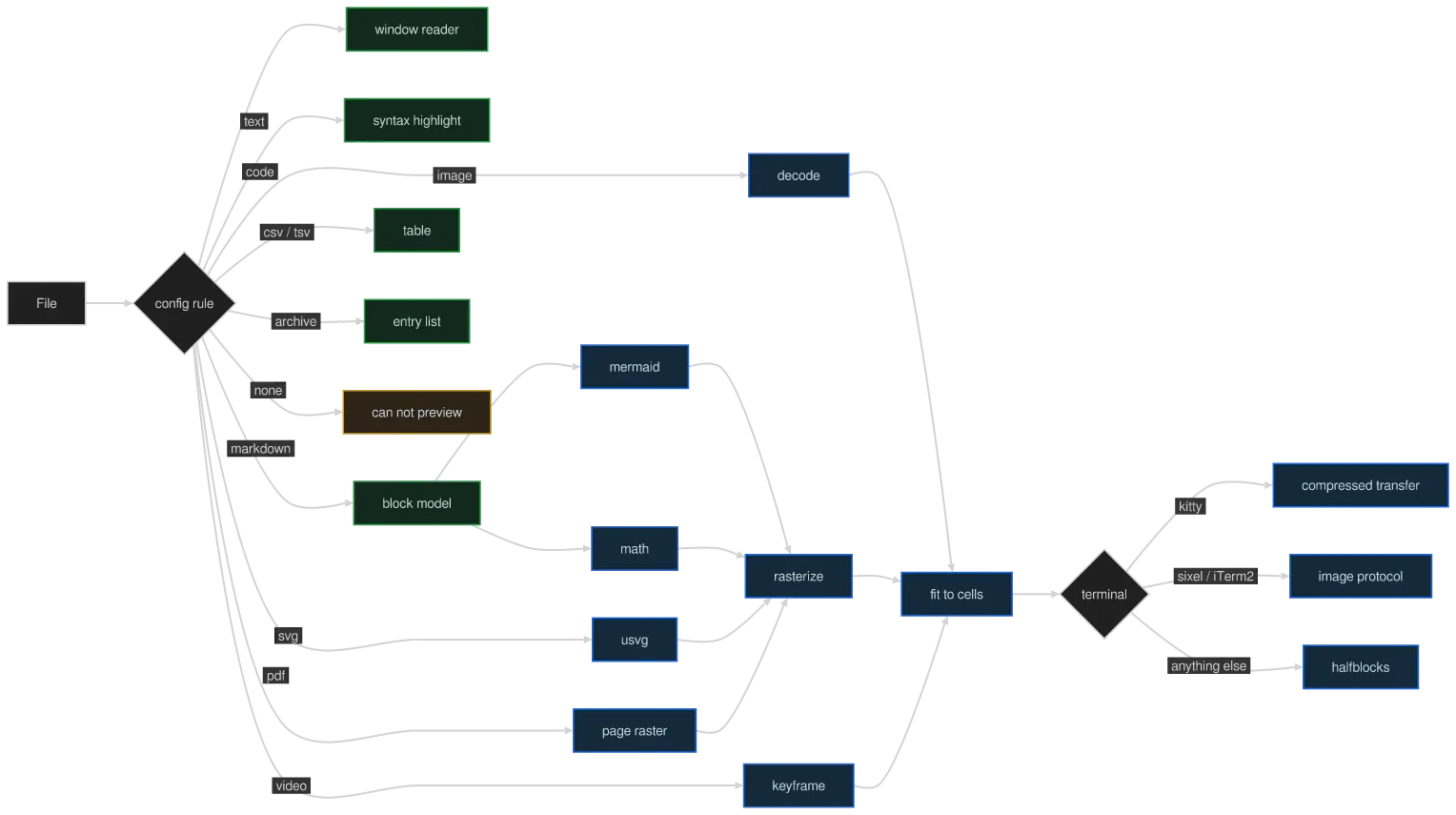

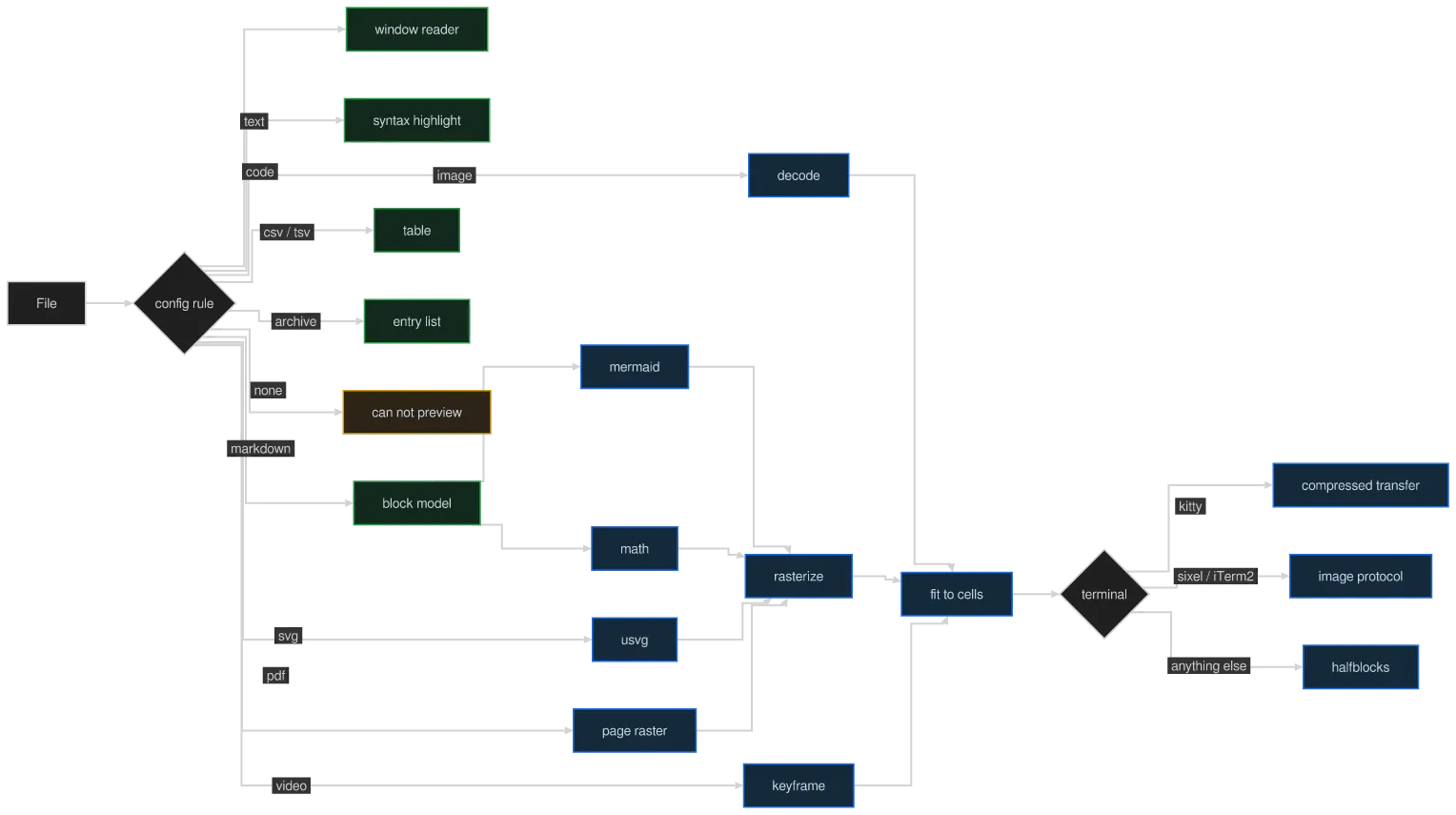

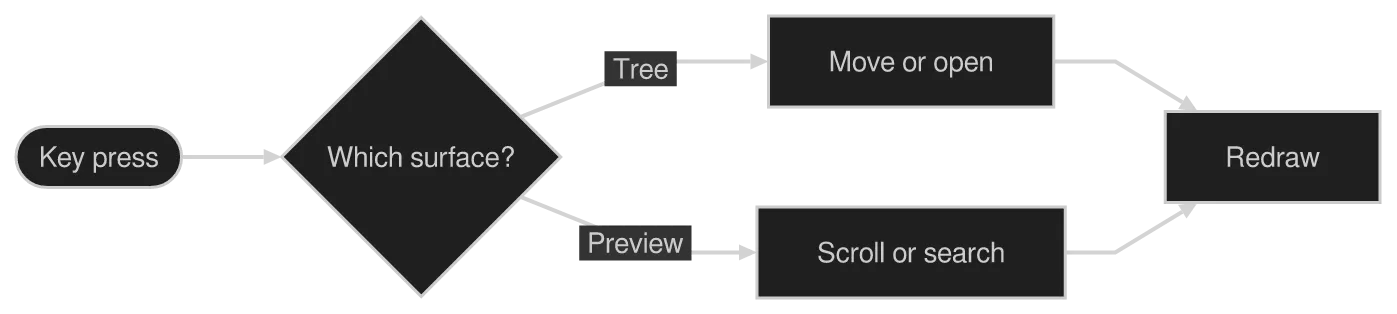

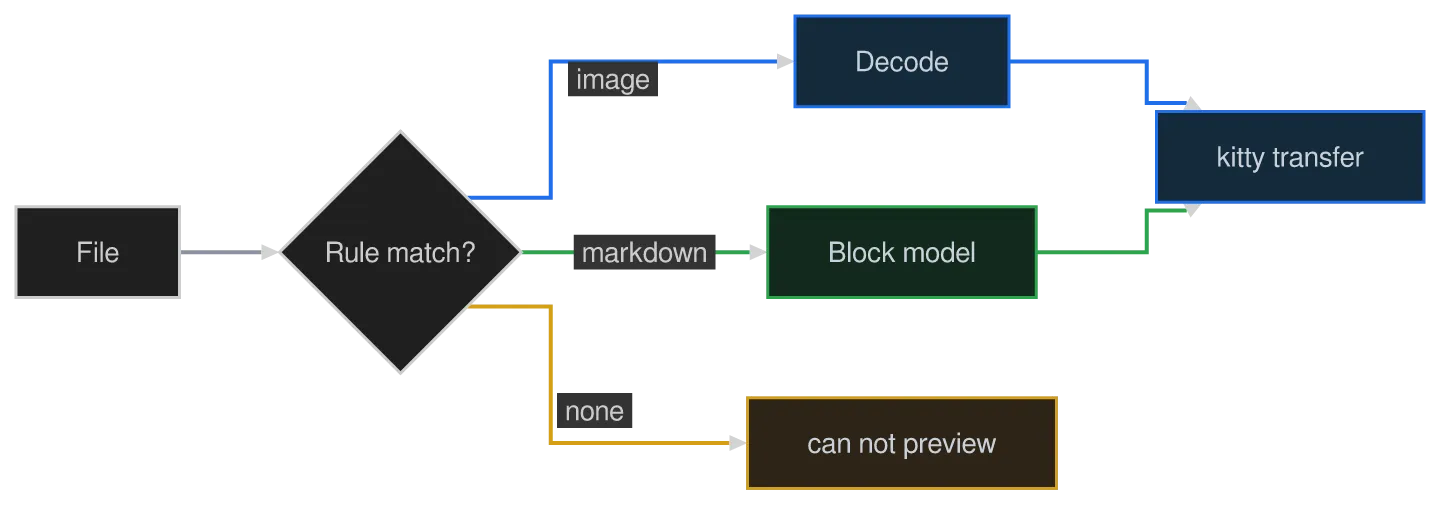

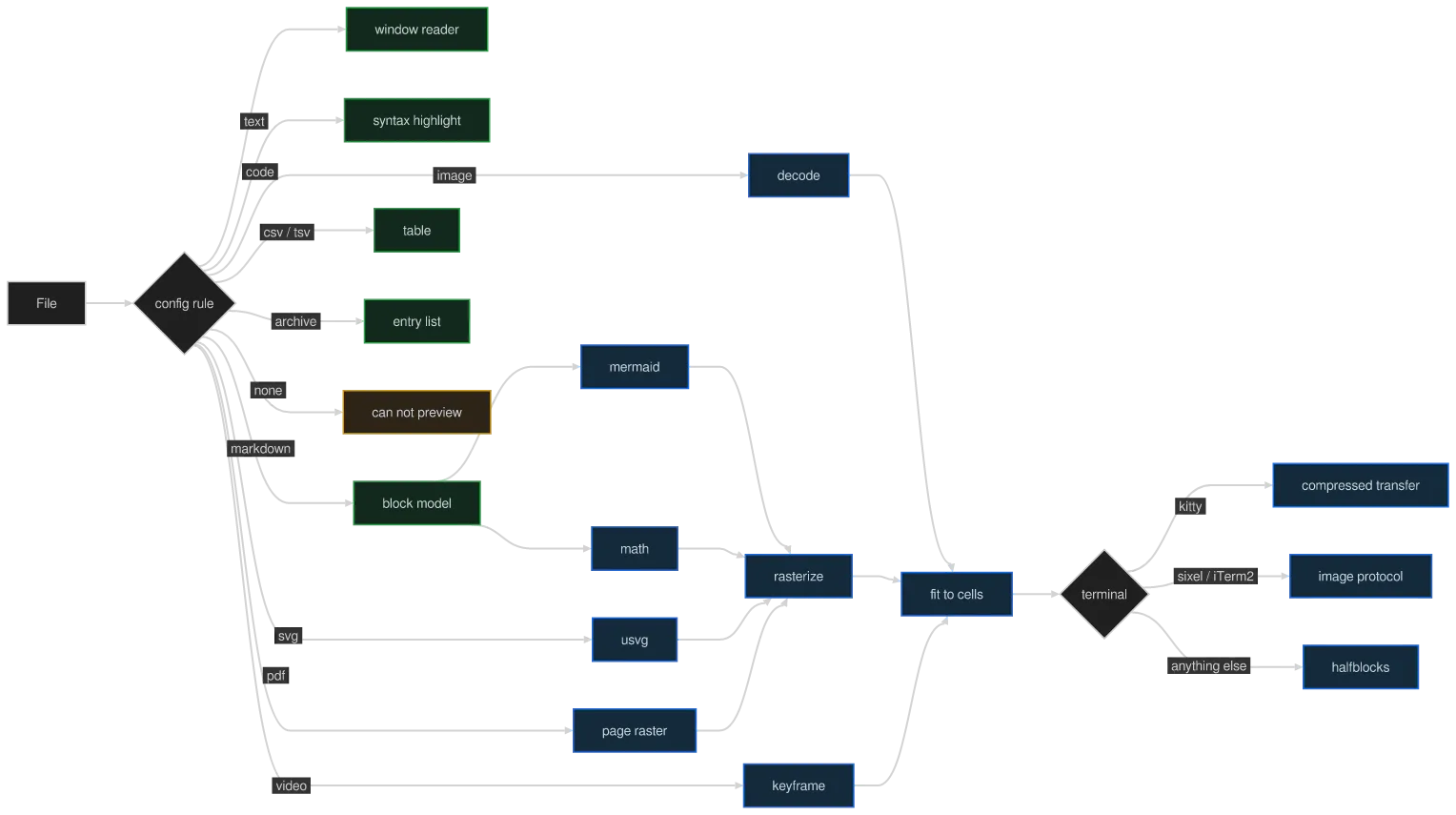

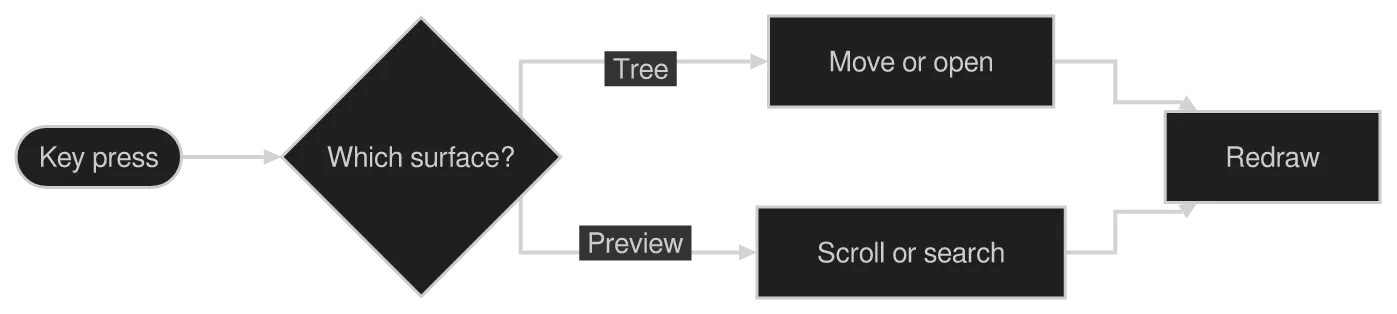

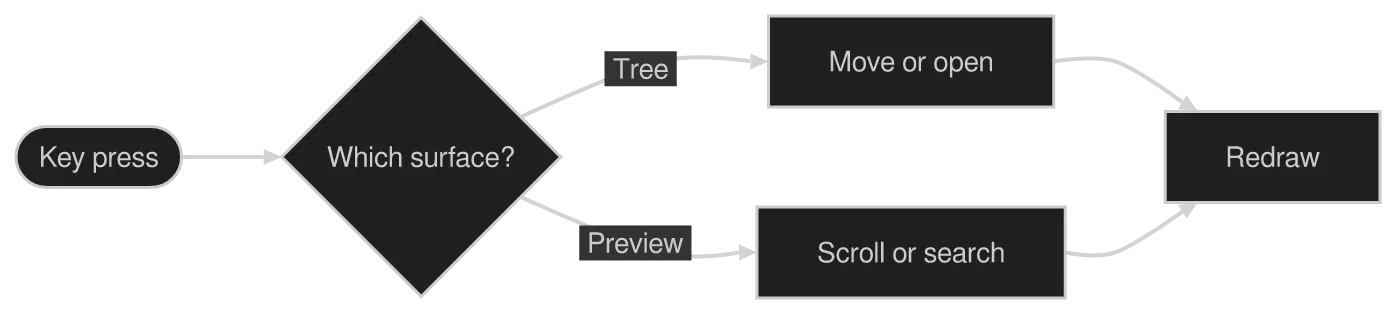

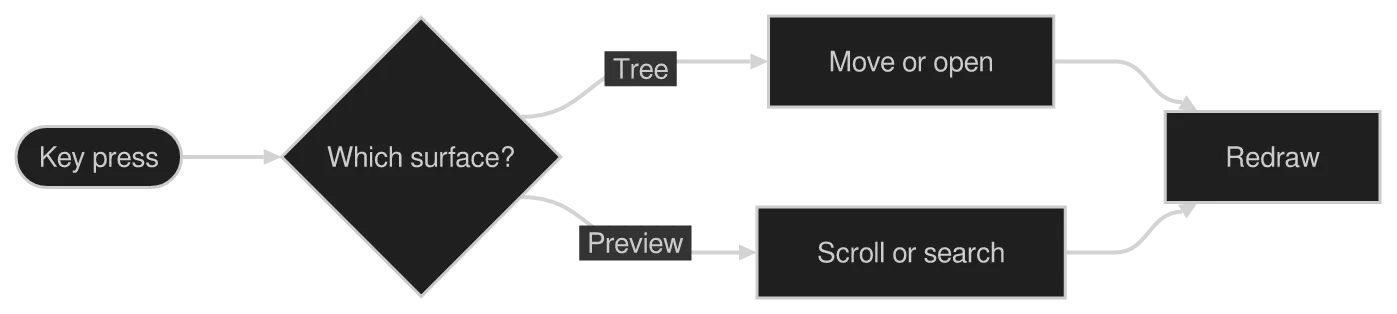

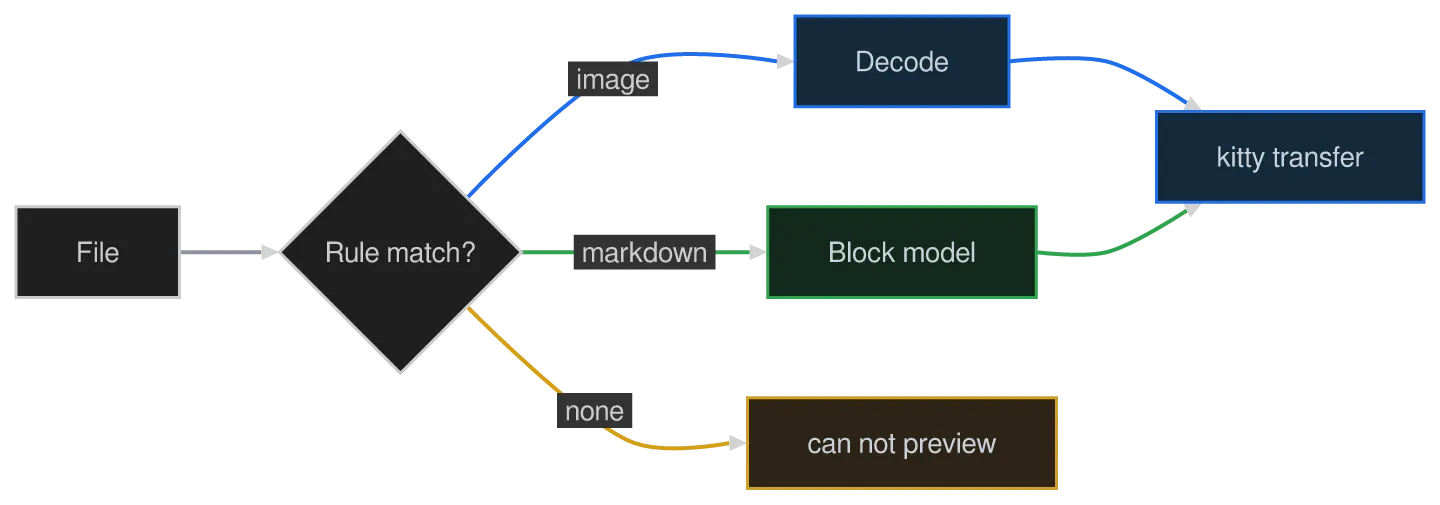

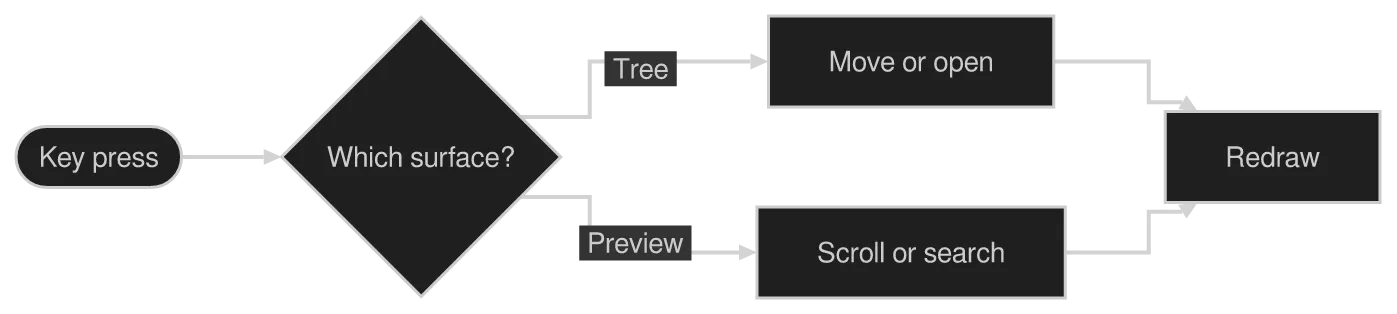

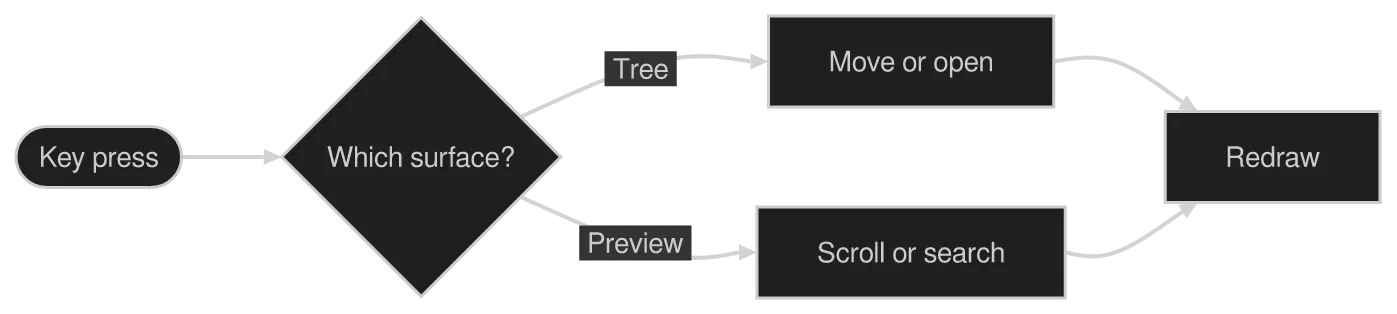

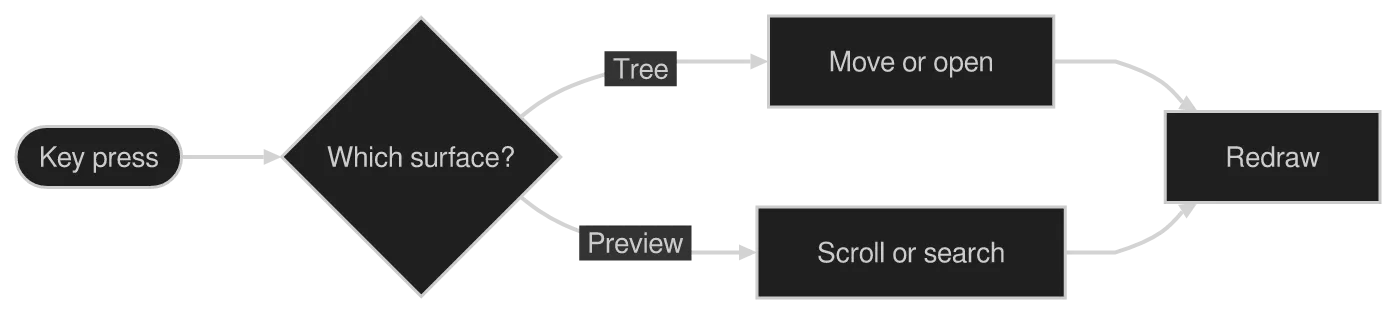

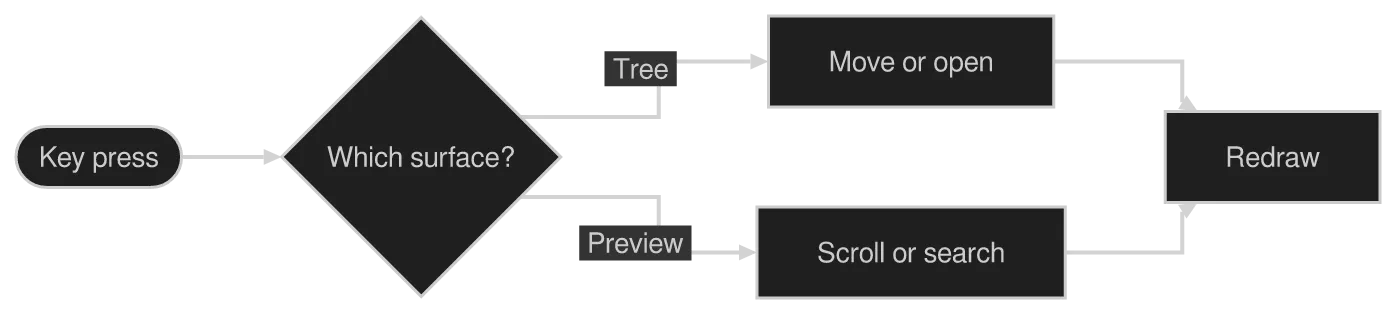

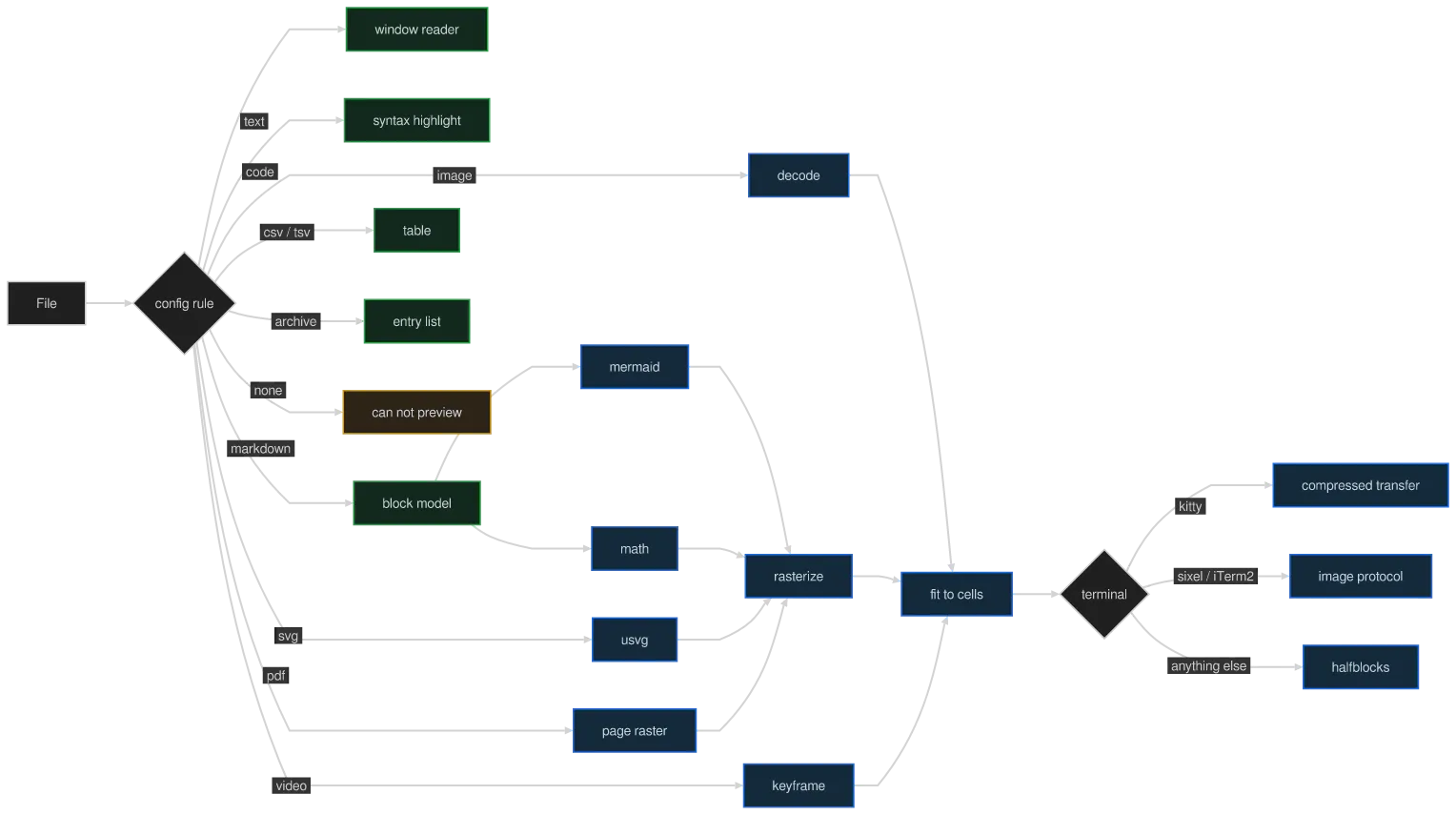

mermaid_curve
Section titled “mermaid_curve”
Overrides written in the diagram

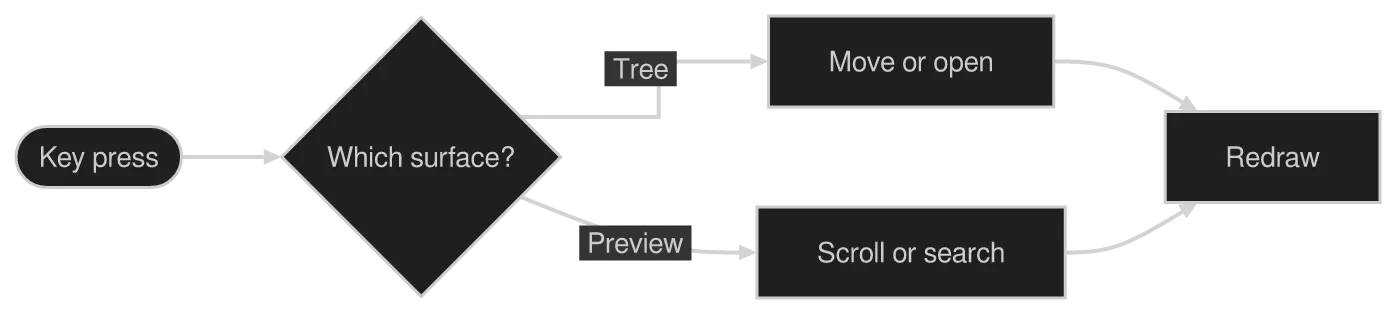

Section titled “Overrides written in the diagram”With the setting left at its default basis, a diagram can still ask for a
different curve itself. Weakest first: the setting < the diagram’s own
%%{init: {"flowchart": {"curve": "..."}}}%% directive < a
linkStyle <n> interpolate <curve> naming one edge. Both are ignored under
konoma-orthogonal.

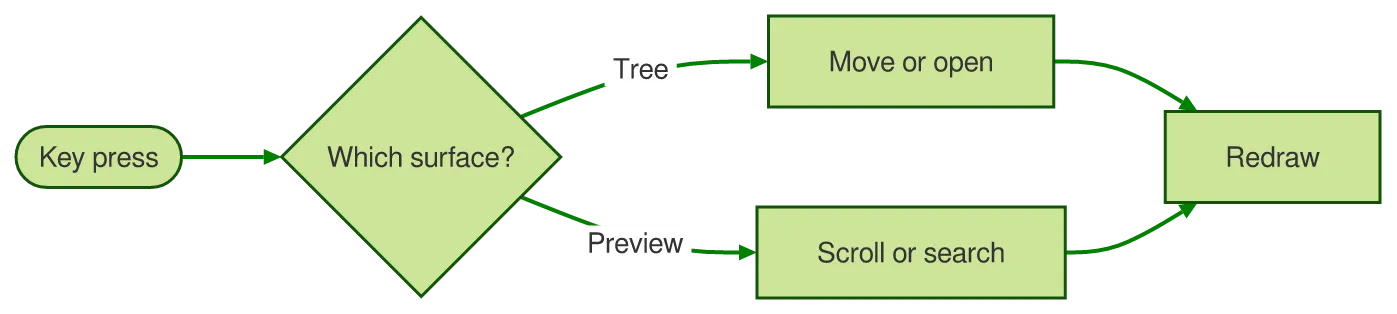

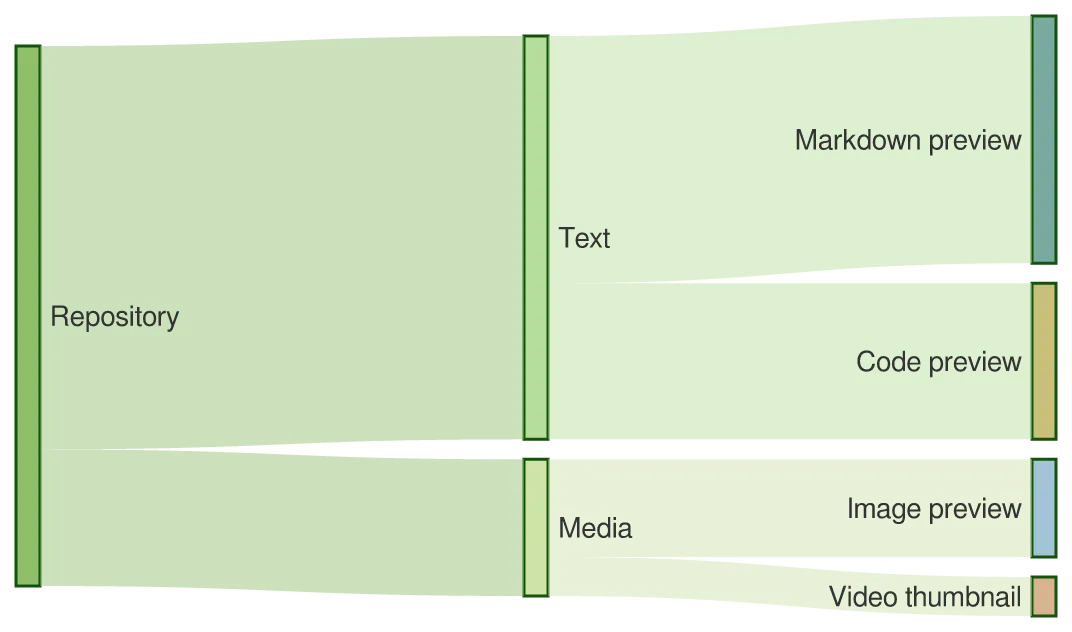

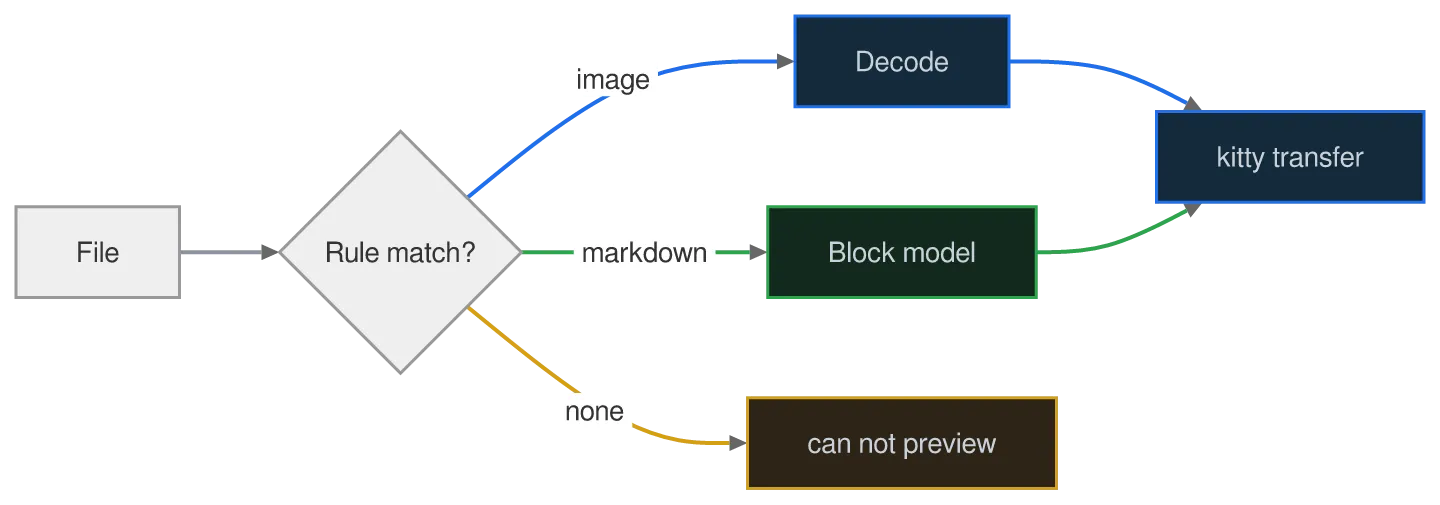

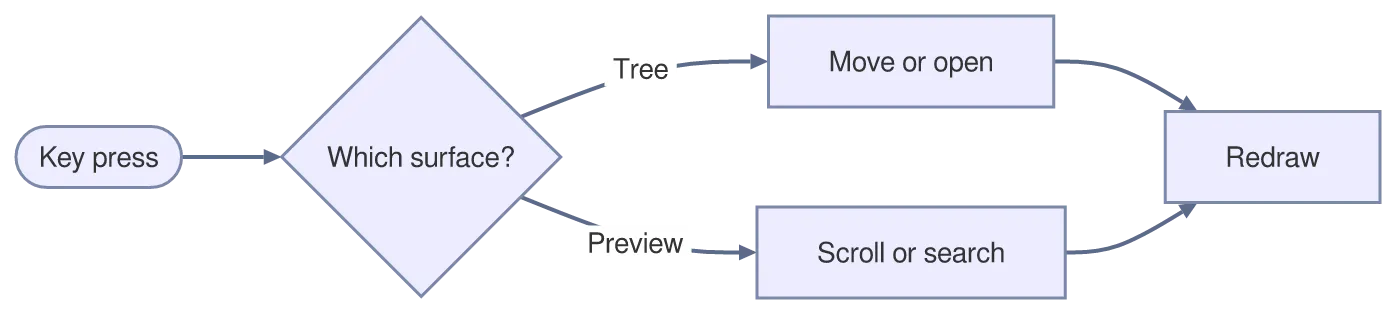

mermaid_theme
Section titled “mermaid_theme”
02 — the colour flowchart
Section titled “02 — the colour flowchart”This one sets its own colours with classDef, ::: and style. It shows how a
theme relates to colours the author picked: the theme paints everything the
diagram did not, and the author’s colours survive on top of it.
mermaid_routing
Section titled “mermaid_routing”

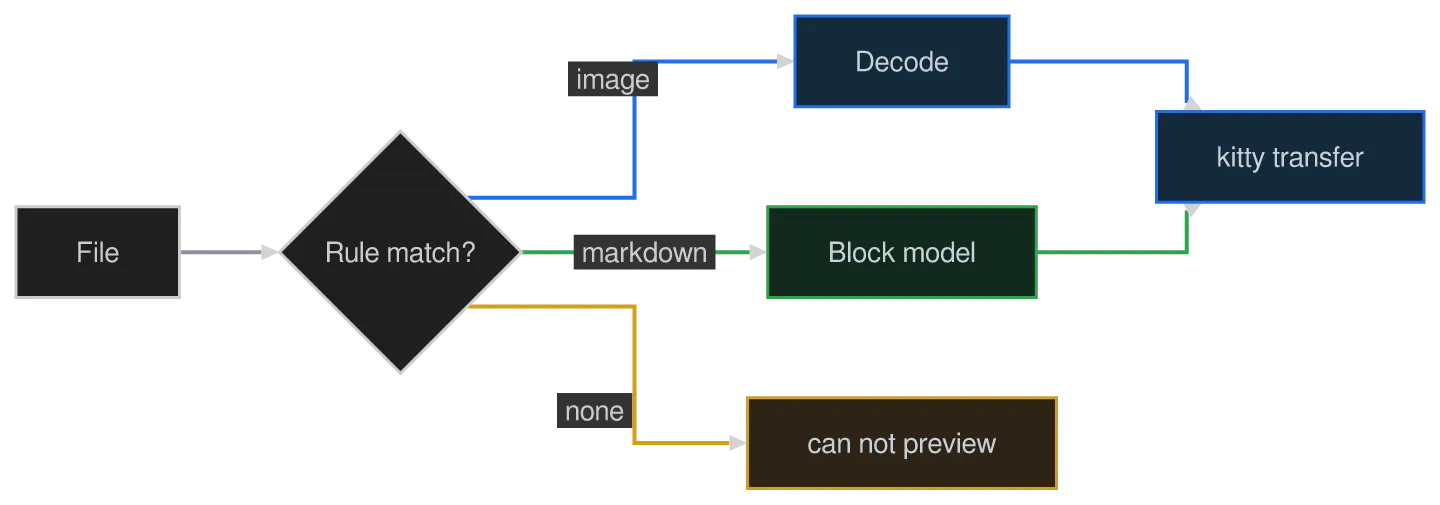

mermaid_curve
Section titled “mermaid_curve”
mermaid_theme
Section titled “mermaid_theme”

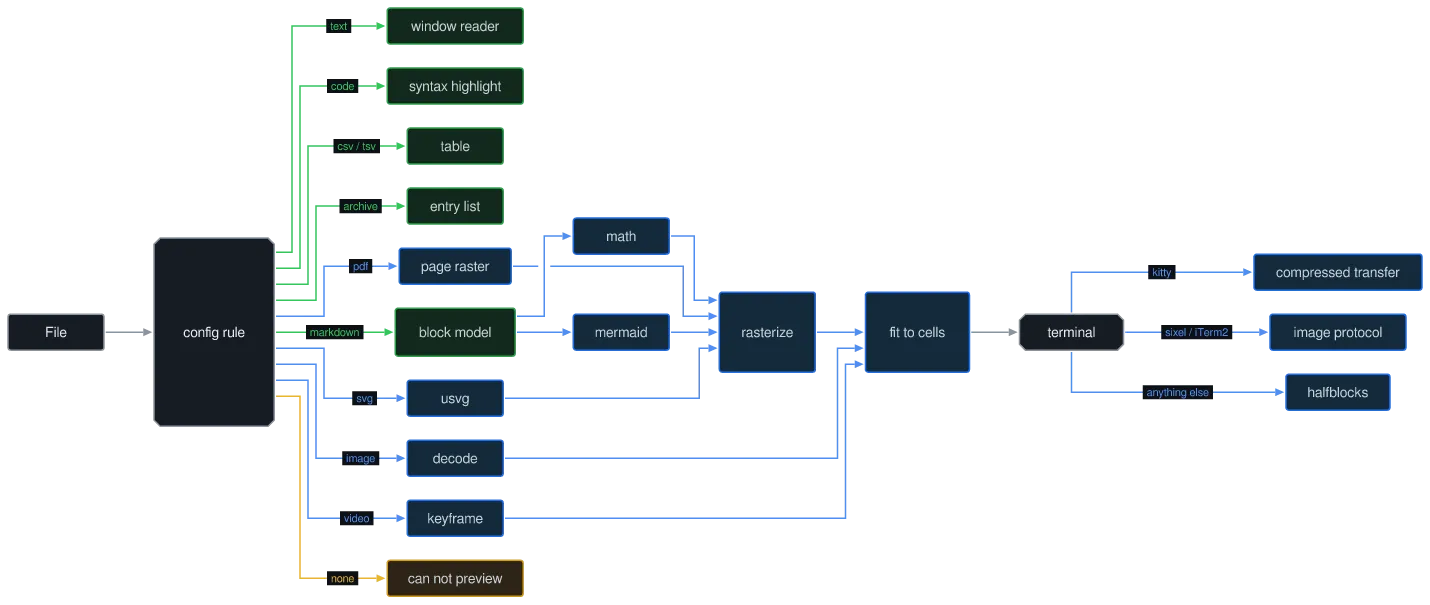

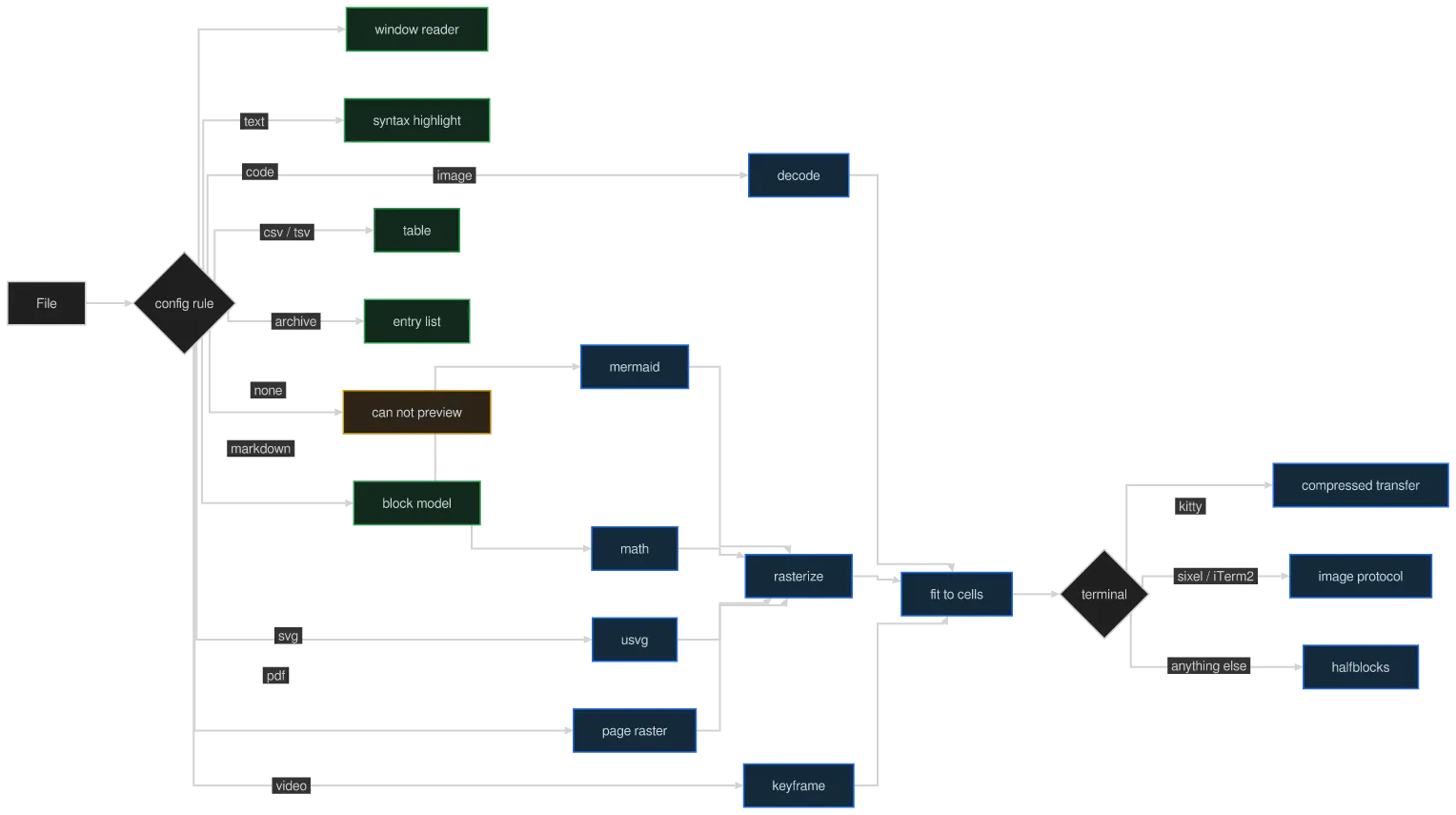

03 — the size flowchart

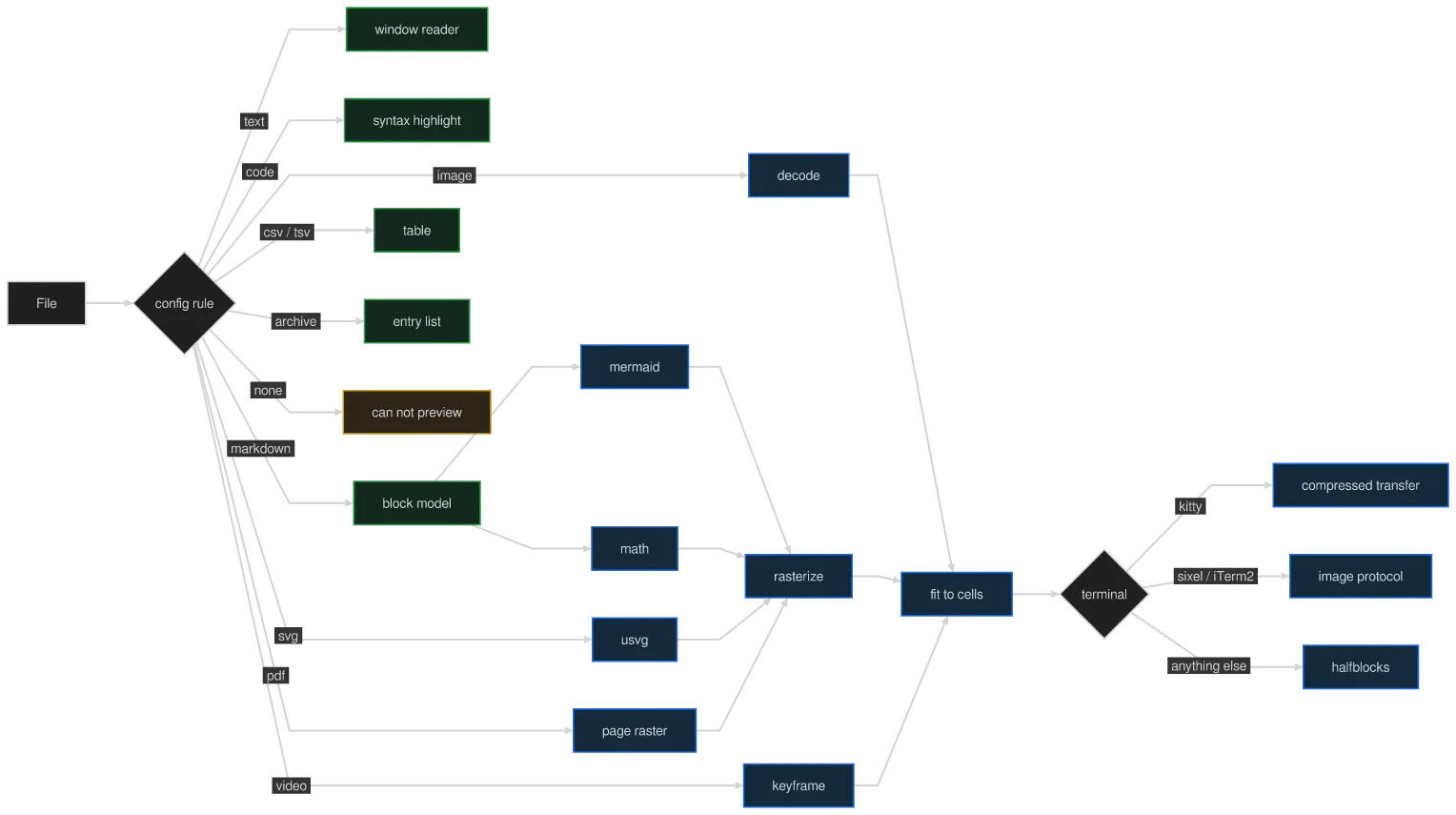

Section titled “03 — the size flowchart”The busy one, and the reason the curve grid below is a single column: its edges span several ranks, and a long rank-spanning edge is where the 13 curves actually separate from each other.
mermaid_routing
Section titled “mermaid_routing”

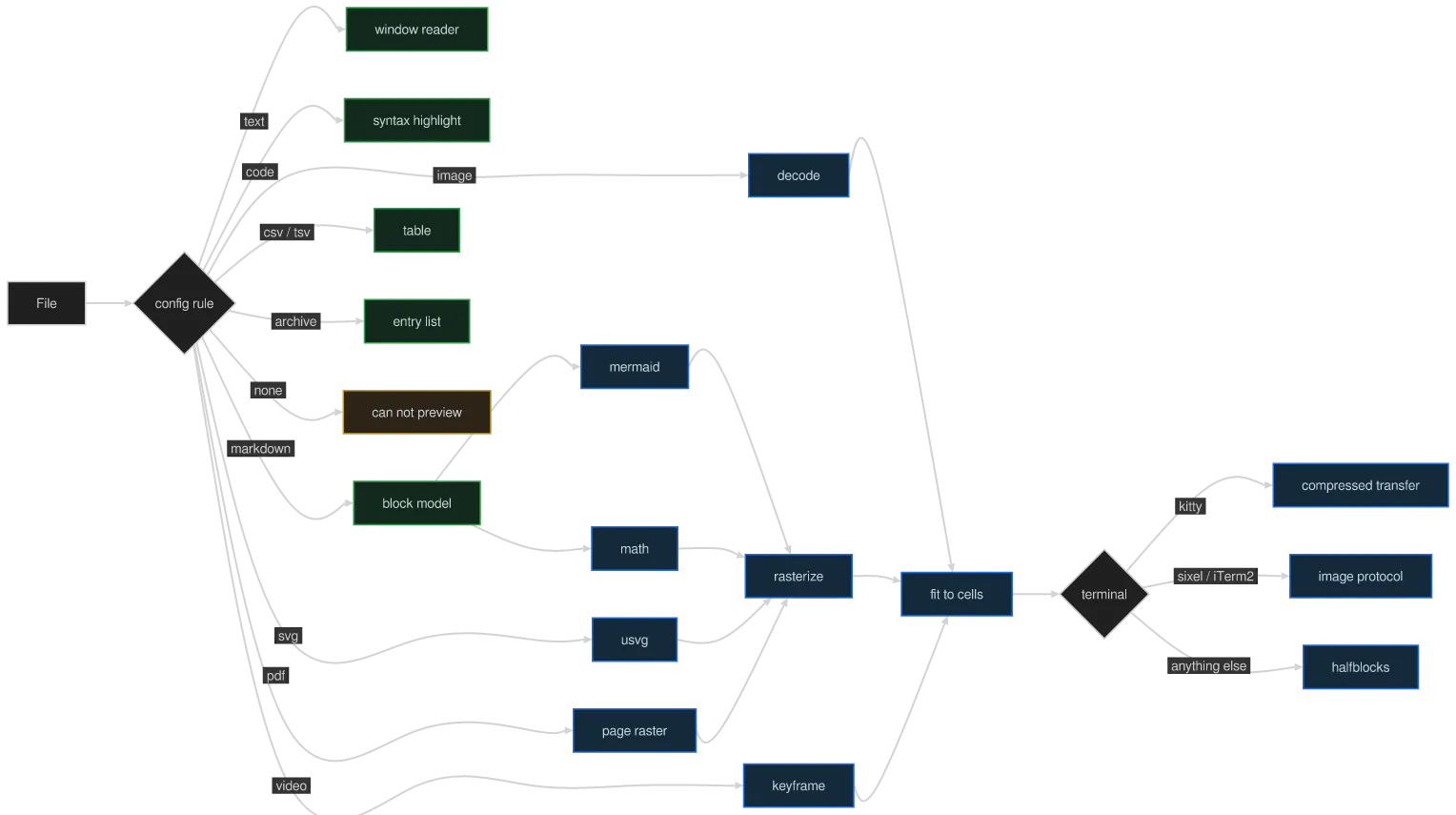

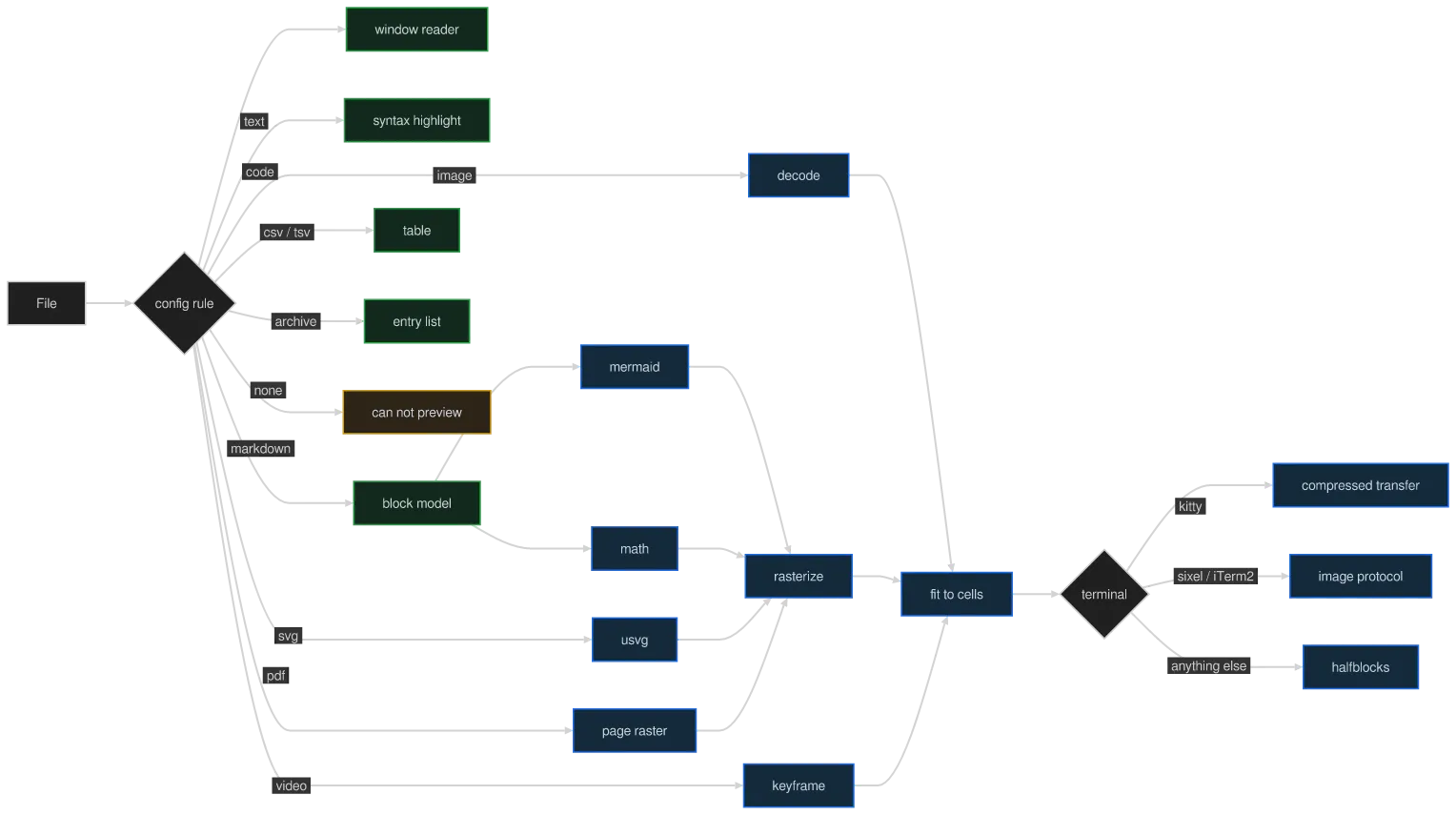

mermaid_curve
Section titled “mermaid_curve”

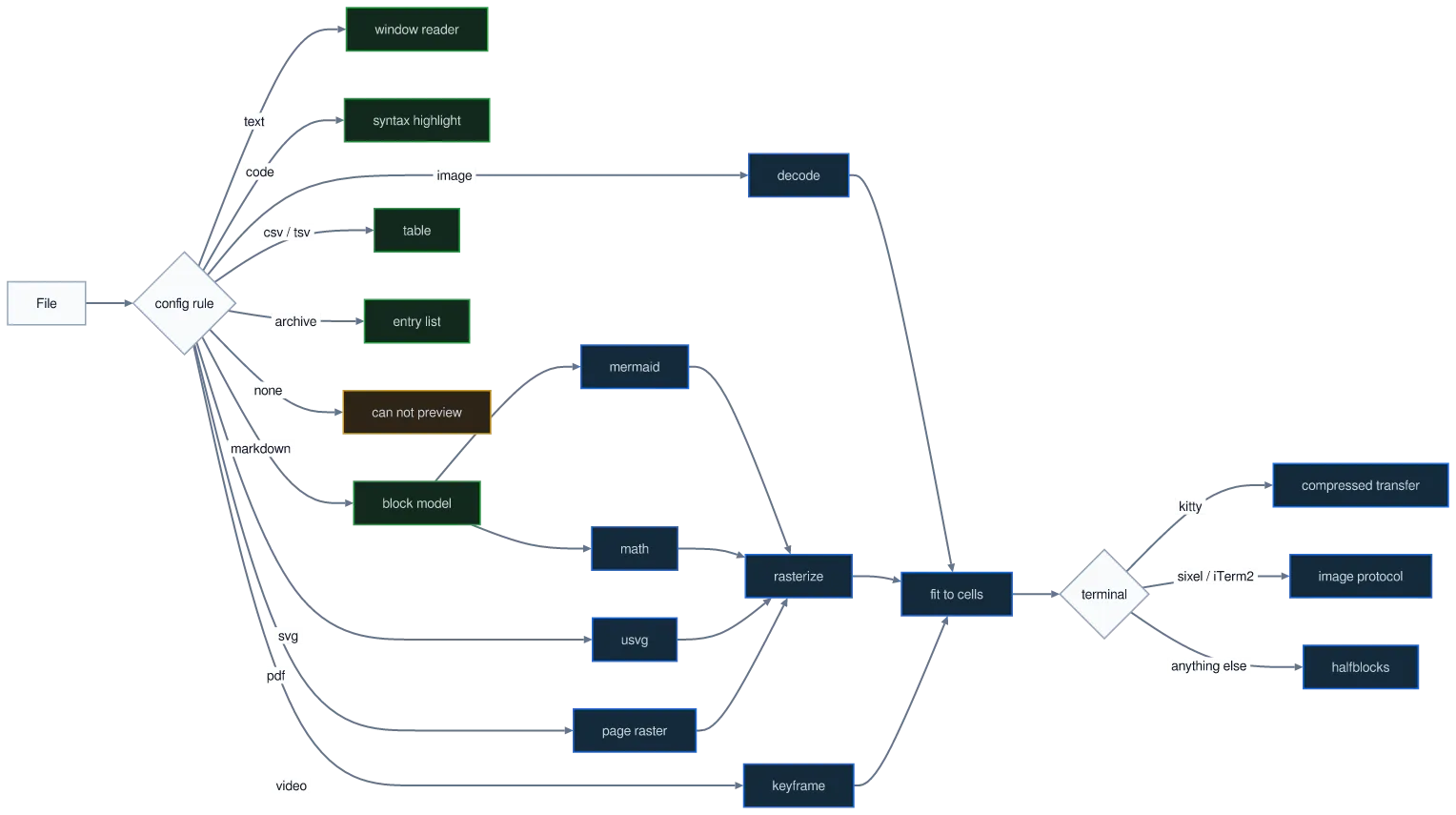

mermaid_theme
Section titled “mermaid_theme”
04 — the state diagram
Section titled “04 — the state diagram”mermaid_routing reaches state diagrams too — its pair is in
stateDiagram-v2 below — but
mermaid_curve never does. What is left is the palette each theme gives a state
machine, and the direction it is laid out in.
mermaid_theme
Section titled “mermaid_theme”
Direction
Section titled “Direction”A state diagram states its direction with a direction line in the body; without
one it runs top to bottom. The routing rules are the same either way — the
konoma-orthogonal design references 2b and 2c are the same graph in LR and
TB for exactly that reason.
Graphs
Section titled “Graphs”flowchart — boxes and arrows
Section titled “flowchart — boxes and arrows”The workhorse: three quarters of the mermaid in the wild is this one kind. Note
the direction (LR), the stadium and diamond shapes, and the labels riding on
the arrows.
Mermaid source
flowchart LR
K([Key press]) --> S{Which surface?}
S -->|Tree| M[Move or open]
S -->|Preview| P[Scroll or search]
M --> R[Redraw]

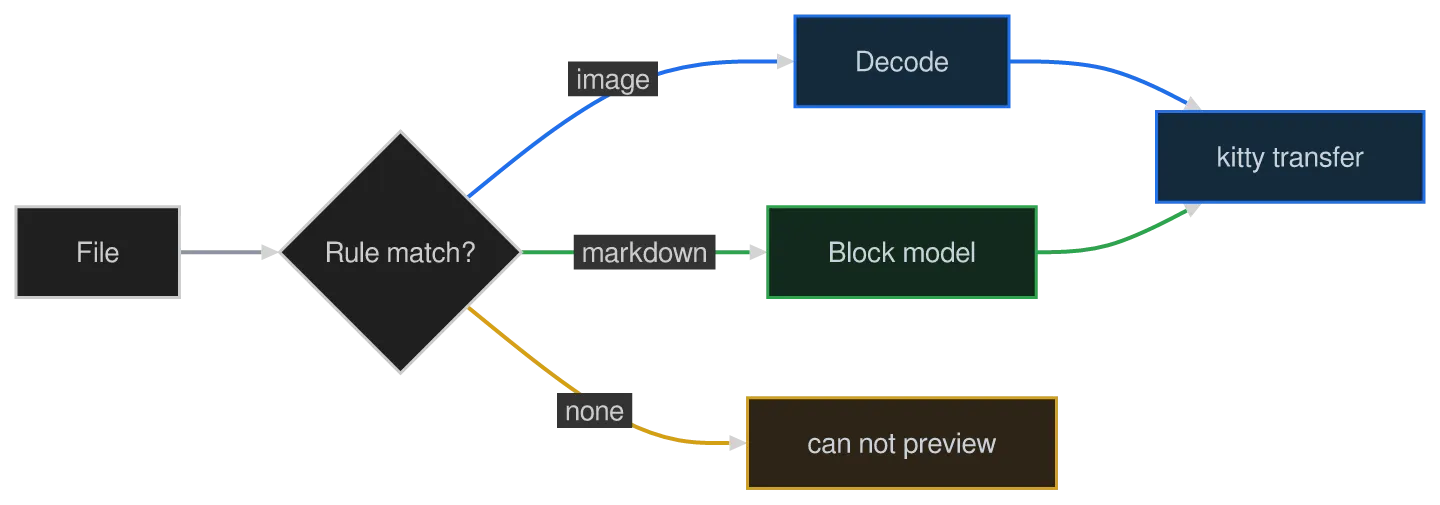

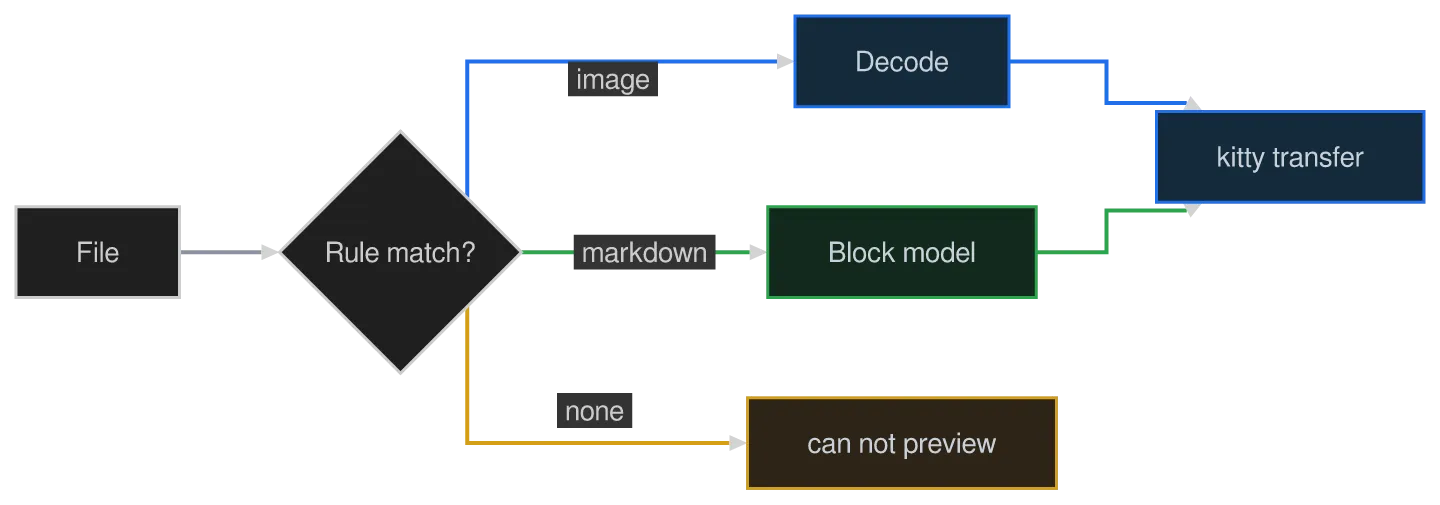

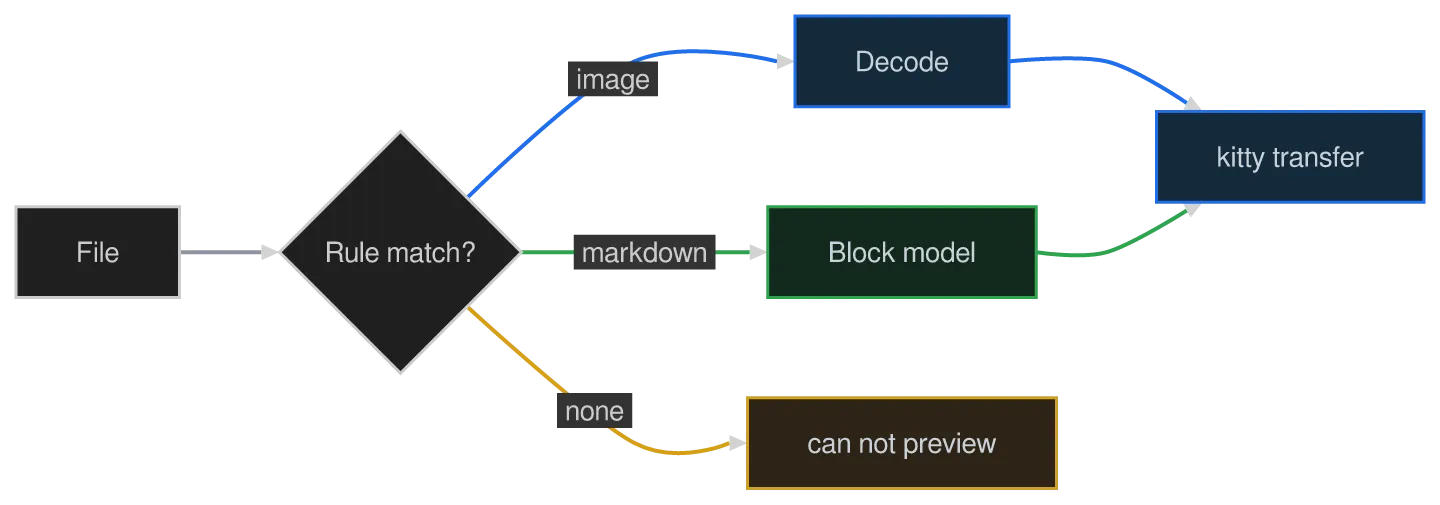

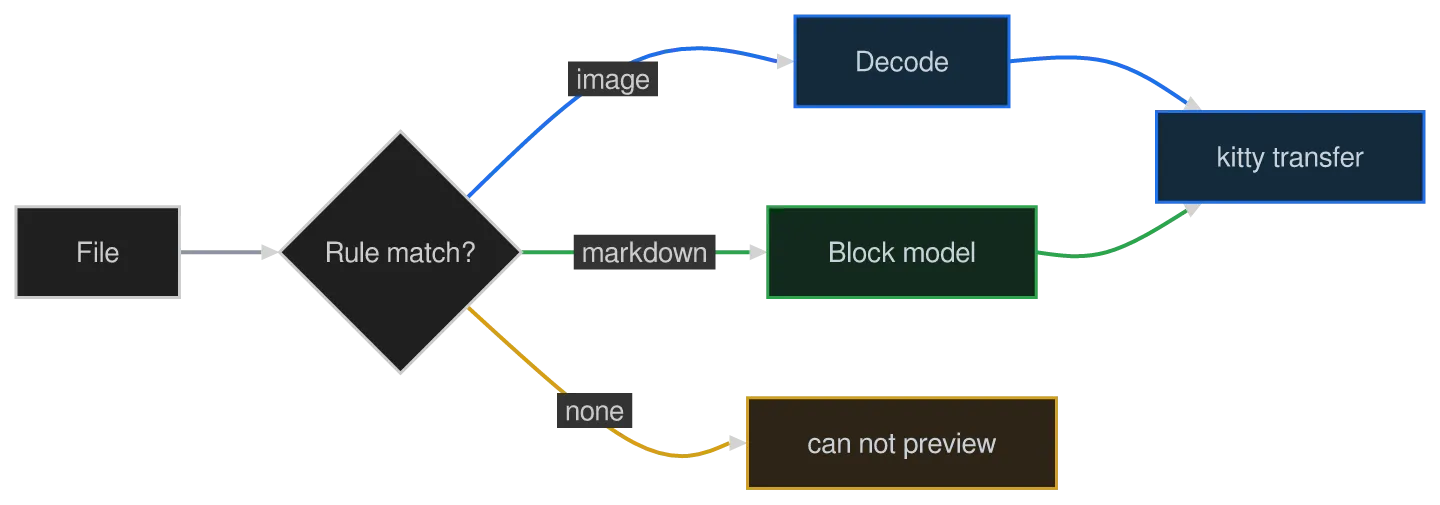

P --> RColour — classDef, :::, style, linkStyle
Section titled “Colour — classDef, :::, style, linkStyle”Colour is how a flowchart says what belongs together. classDef names a set of
declarations, class (or the ::: shorthand) attaches it to nodes, style
paints one node directly, and linkStyle paints edges by declaration index.
Mermaid source

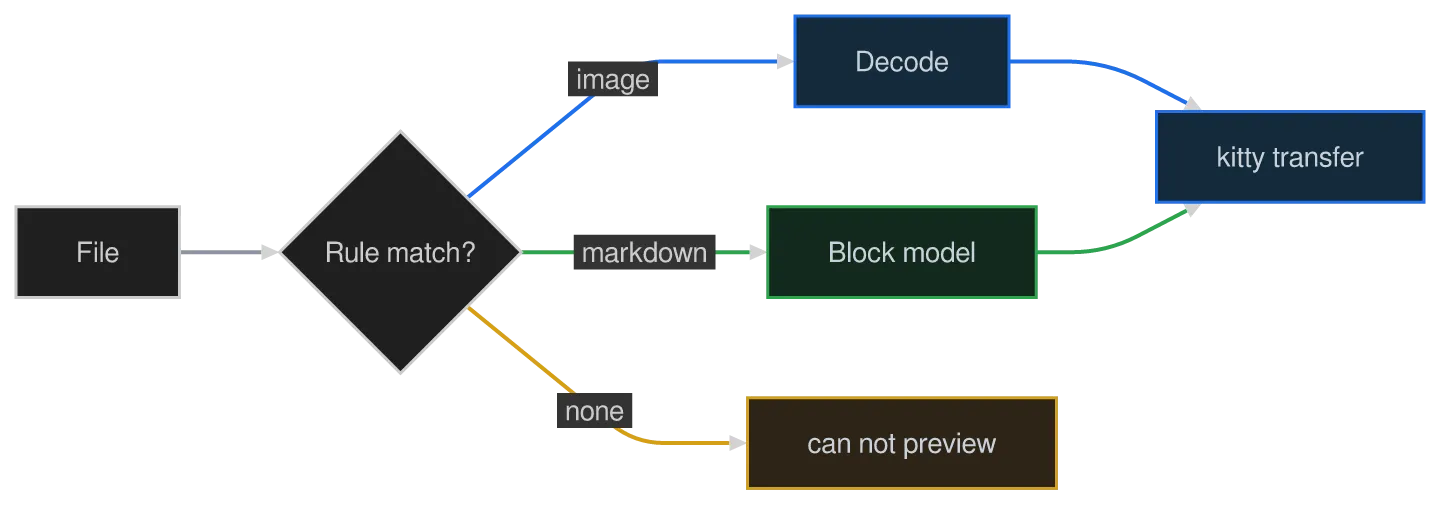

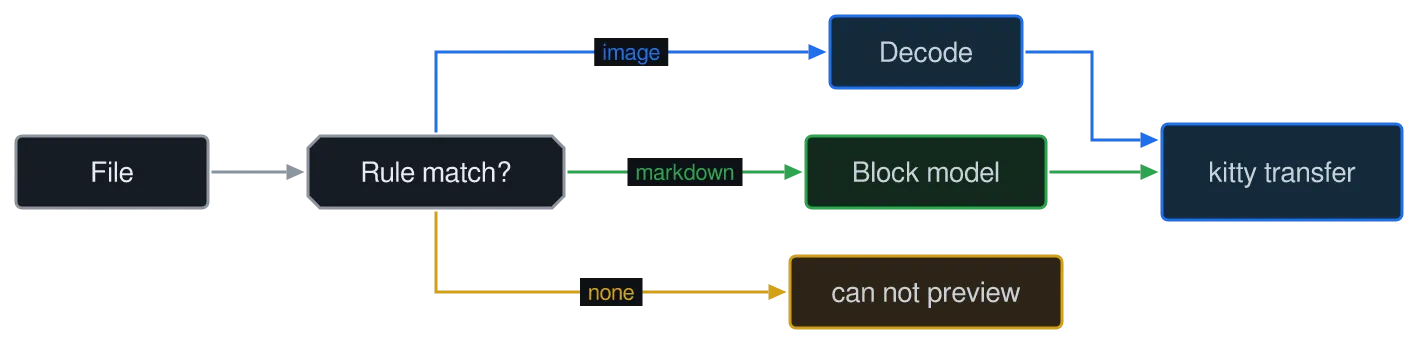

flowchart LR
F[File] --> R{Rule match?}
R -->|image| I[Decode]:::media
R -->|markdown| M[Block model]:::text
R -->|none| X[can not preview]
I --> K[kitty transfer]:::media
M --> K
classDef media fill:#132a3a,stroke:#1f6feb,color:#c9d1d9
classDef text fill:#12291c,stroke:#2da44e,color:#c9d1d9
style X fill:#2d2418,stroke:#d4a017,color:#c9d1d9
linkStyle 0 stroke:#8b949e
linkStyle 1,4 stroke:#1f6feb
linkStyle 2,5 stroke:#2da44e

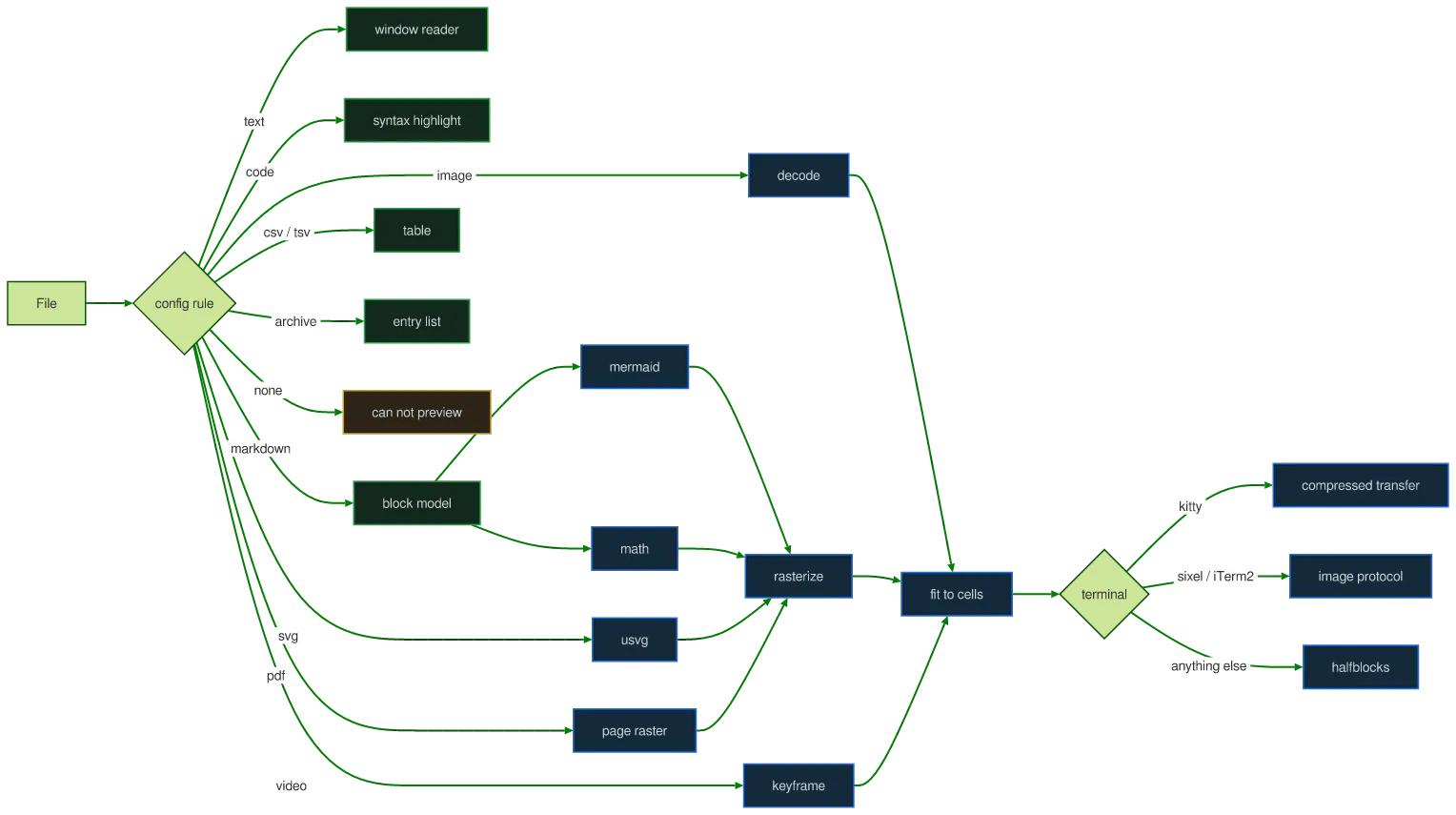

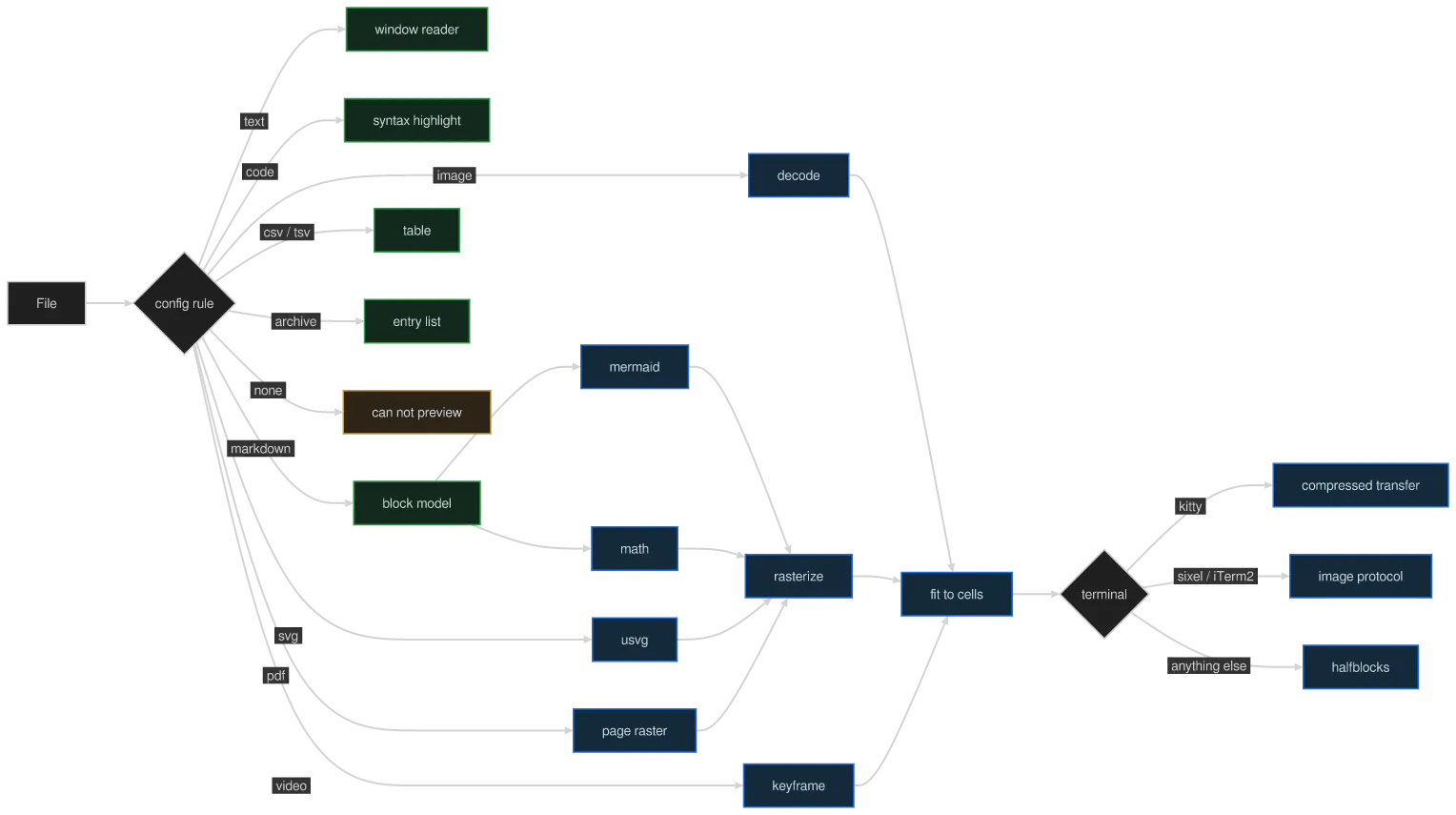

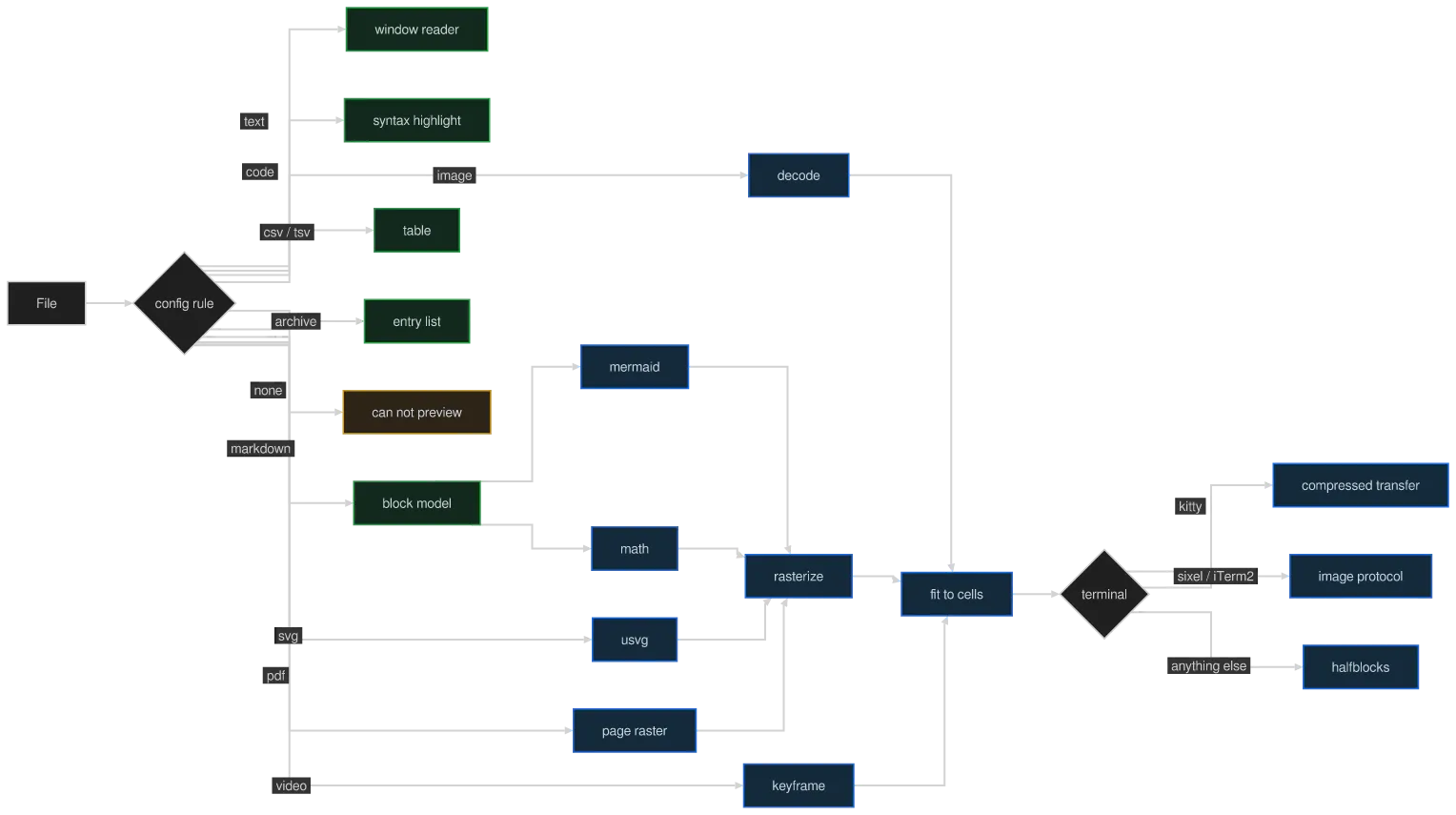

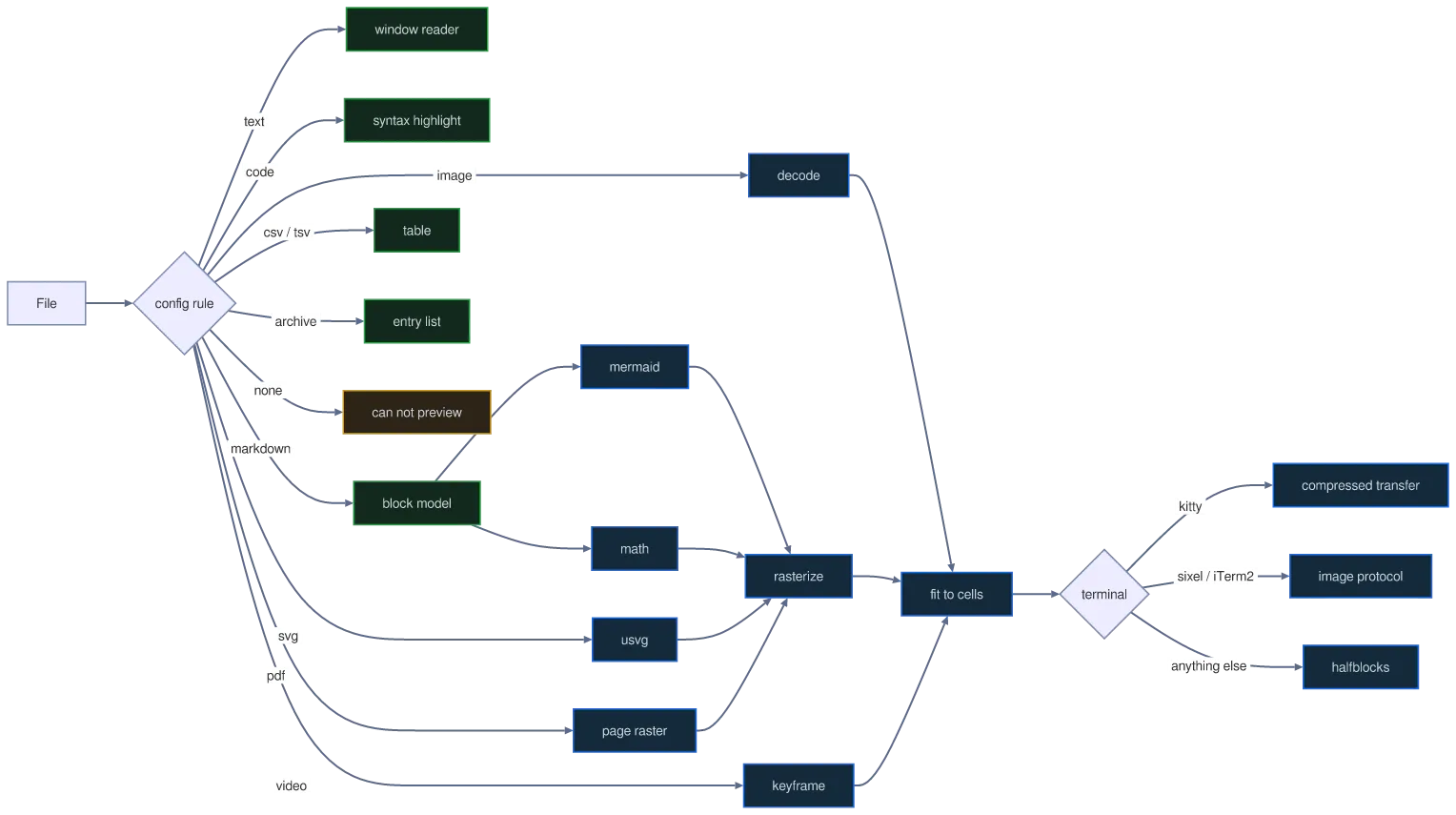

linkStyle 3 stroke:#d4a017Size — a diagram is drawn at the size it needs
Section titled “Size — a diagram is drawn at the size it needs”konoma lays a diagram out at the size of the text around it and never blows it up. A busy one is genuinely wide — this is konoma’s own preview dispatch, every format it knows and the three ways a picture can reach a terminal.

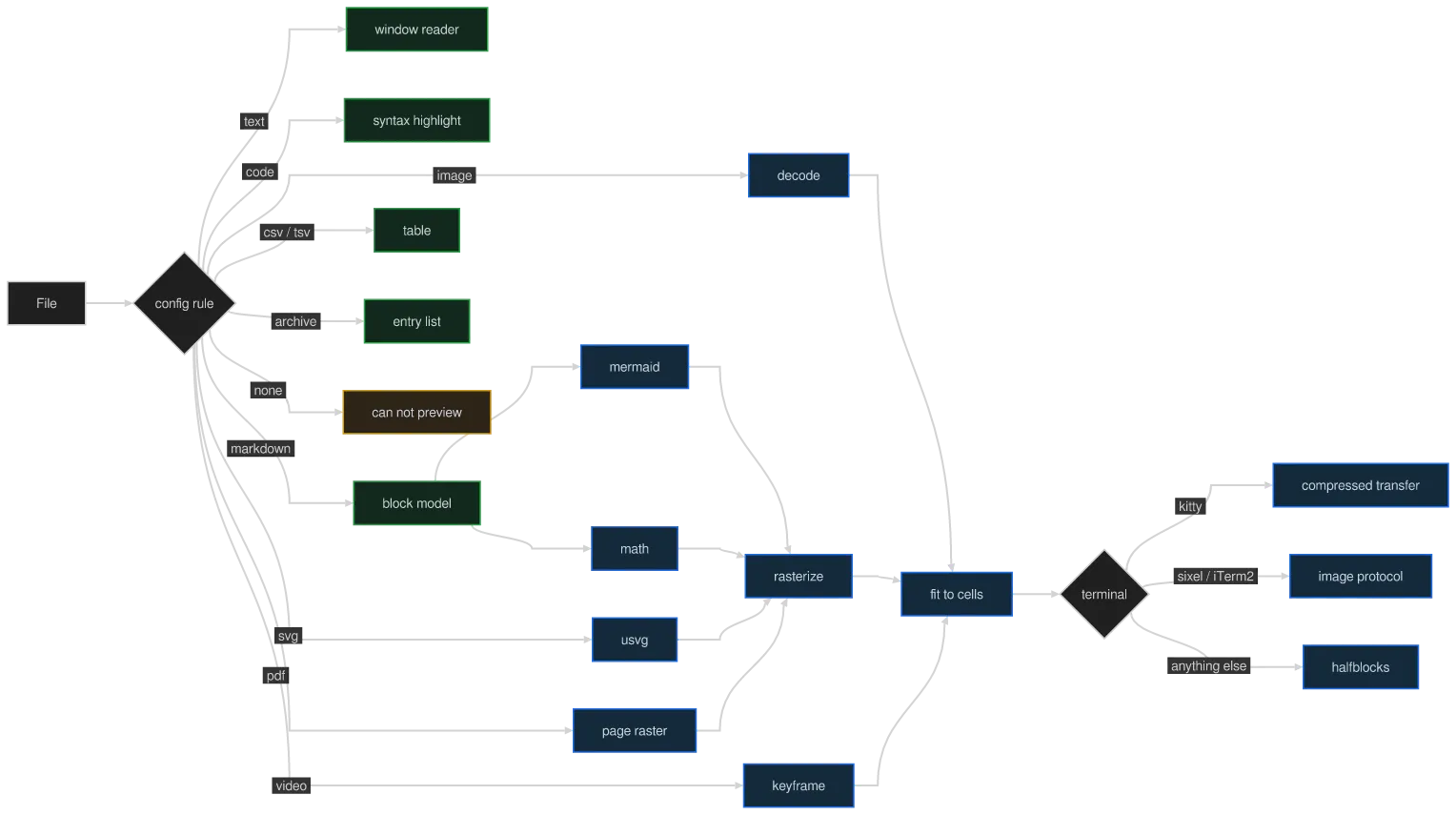

Mermaid source
flowchart LR
F[File] --> C{config rule}
C -->|text| T[window reader]
C -->|code| S[syntax highlight]
C -->|markdown| MD[block model]
C -->|csv / tsv| TB[table]
C -->|image| IM[decode]
C -->|pdf| PD[page raster]
C -->|svg| SV[usvg]
C -->|video| VD[keyframe]
C -->|archive| AR[entry list]
C -->|none| NA[can not preview]
MD --> MM[mermaid]
MD --> MA[math]
MM --> RS[rasterize]
MA --> RS
SV --> RS
PD --> RS
IM --> FIT[fit to cells]
RS --> FIT
VD --> FIT
FIT --> K{terminal}
K -->|kitty| KT[compressed transfer]
K -->|sixel / iTerm2| RI[image protocol]
K -->|anything else| HB[halfblocks]
classDef pix fill:#132a3a,stroke:#1f6feb,color:#c9d1d9
classDef txt fill:#12291c,stroke:#2da44e,color:#c9d1d9
class IM,PD,SV,VD,MM,MA,RS,FIT,KT,RI,HB pix
class T,S,MD,TB,AR txt

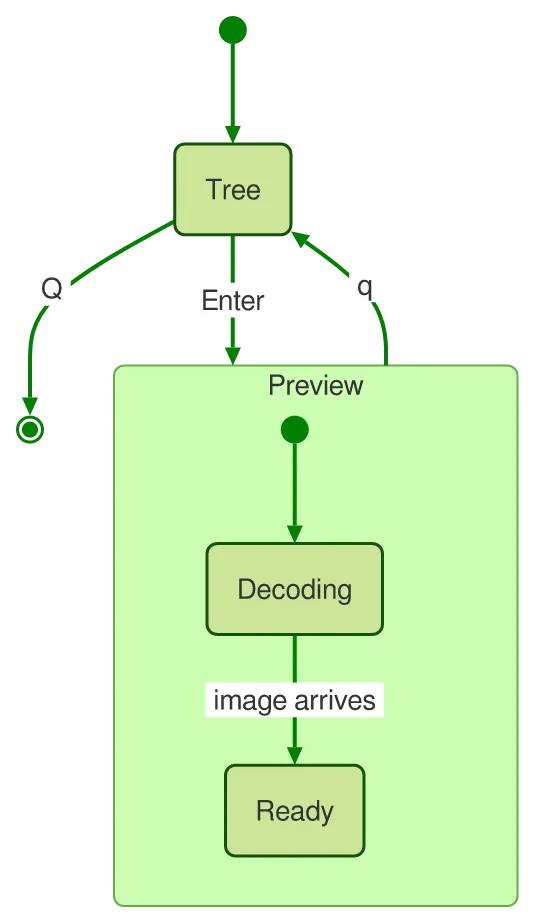

style NA fill:#2d2418,stroke:#d4a017,color:#c9d1d9stateDiagram-v2 — modes and transitions
Section titled “stateDiagram-v2 — modes and transitions”konoma’s whole UI is two modes and the moves between them. [*] is the start
and end marker, and a state can contain a state machine of its own — the frame
around Preview is drawn from the nesting, not from a hint.
Mermaid source
stateDiagram-v2
[*] --> Tree
Tree --> Preview : Enter
Preview --> Tree : q
state Preview {
[*] --> Decoding
Decoding --> Ready : image arrives
}

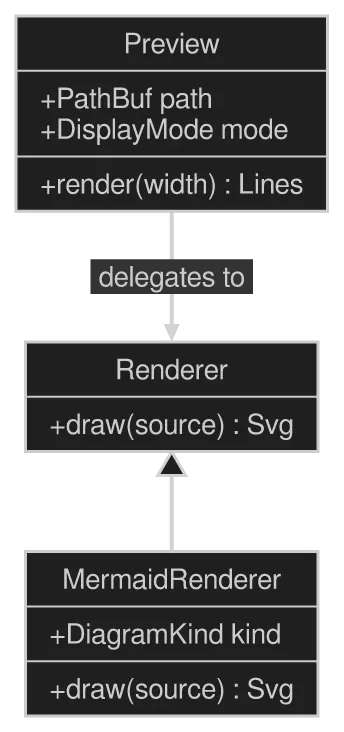

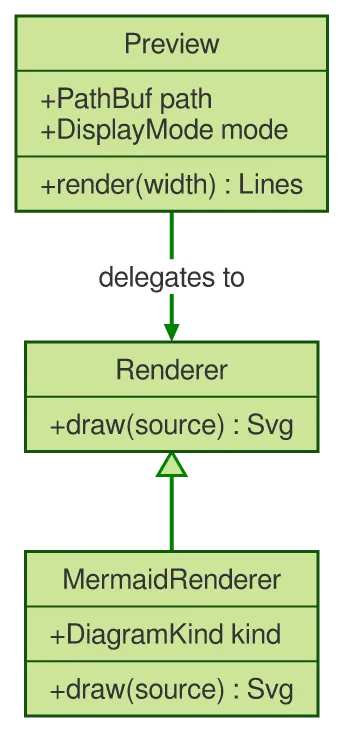

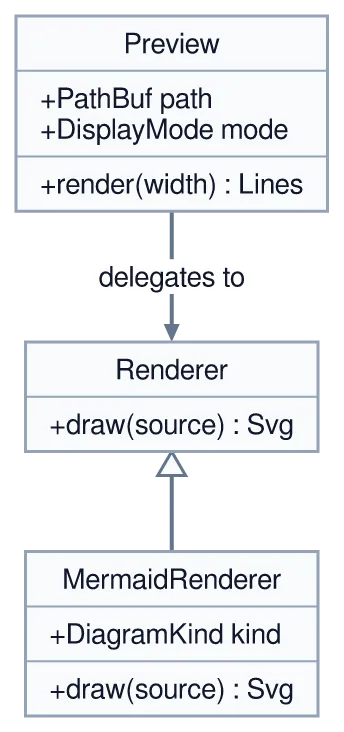

Tree --> [*] : QclassDiagram — types and what they know
Section titled “classDiagram — types and what they know”A class box has compartments: the name, then fields, then methods, with +/-
for visibility. <|-- is inheritance and --> a plain association.
Mermaid source
classDiagram
class Preview {
+PathBuf path
+DisplayMode mode
+render(width) Lines
}
class Renderer {
+draw(source) Svg
}
class MermaidRenderer {
+DiagramKind kind
+draw(source) Svg
}
Preview --> Renderer : delegates to
Renderer <|-- MermaidRenderermermaid_theme

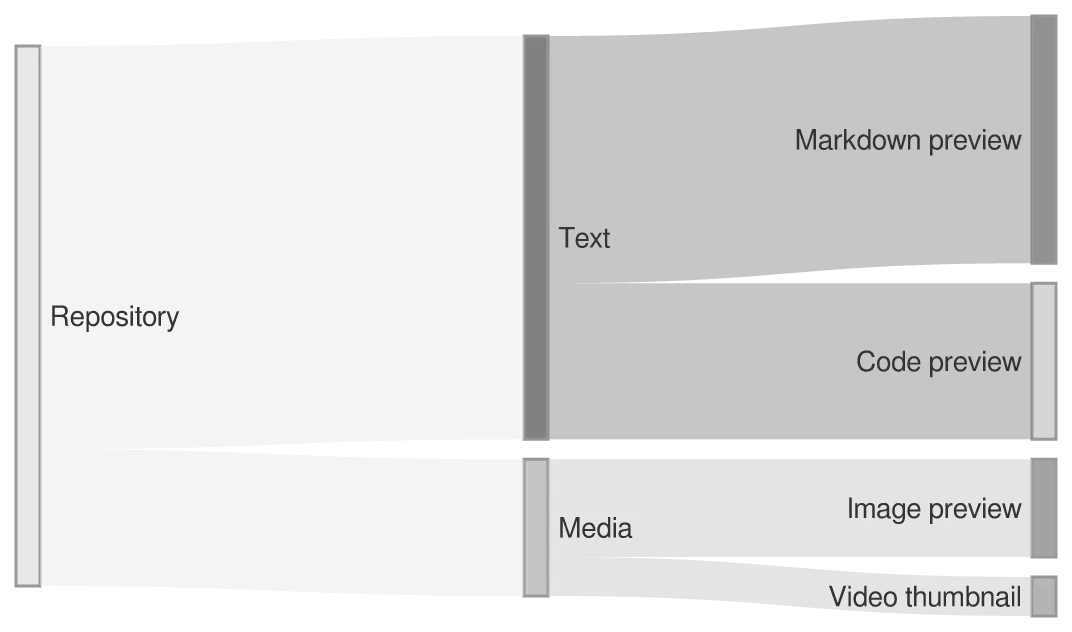

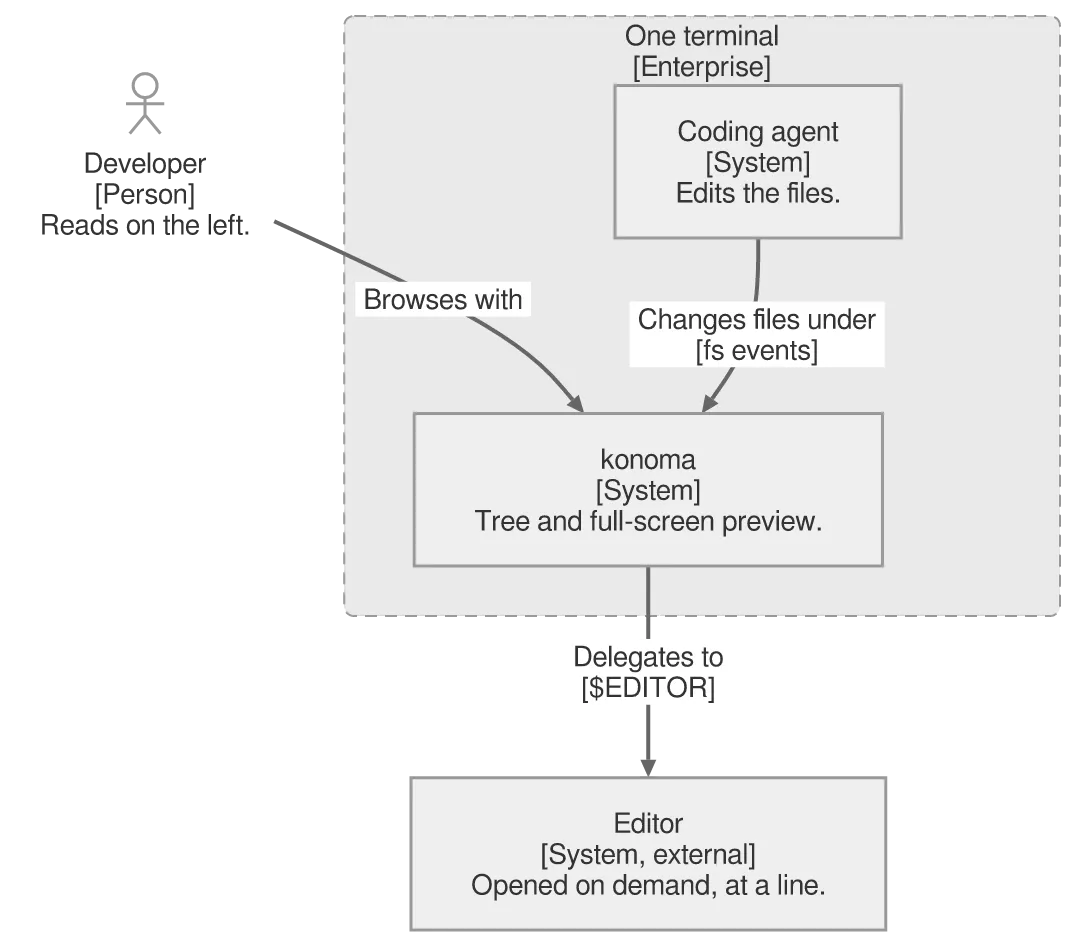

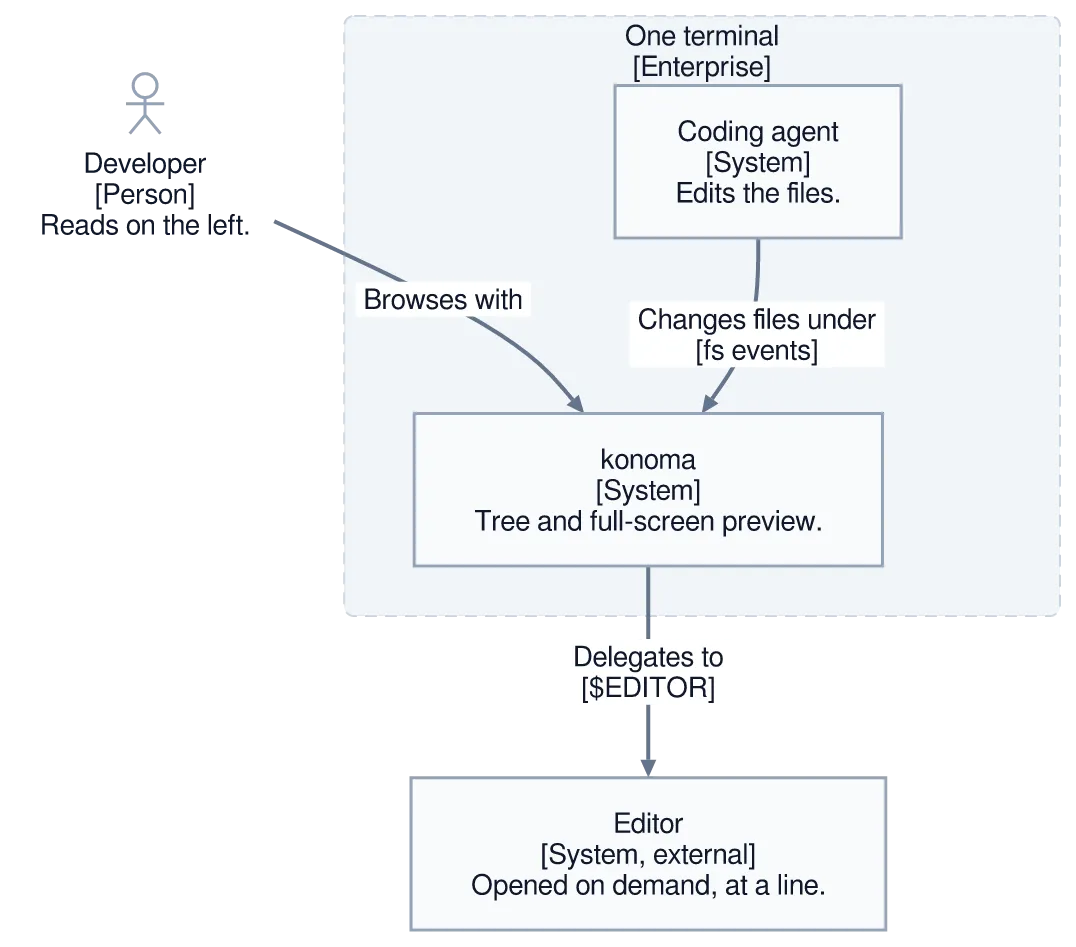

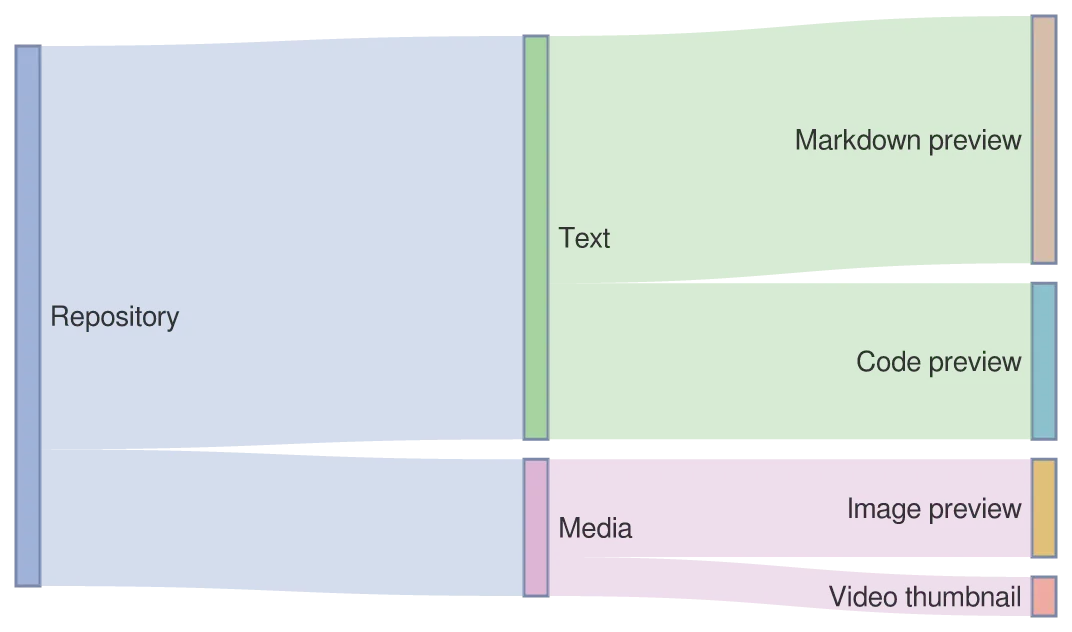

Section titled “mermaid_theme”Every kind follows the theme; shown on dark and light plates.

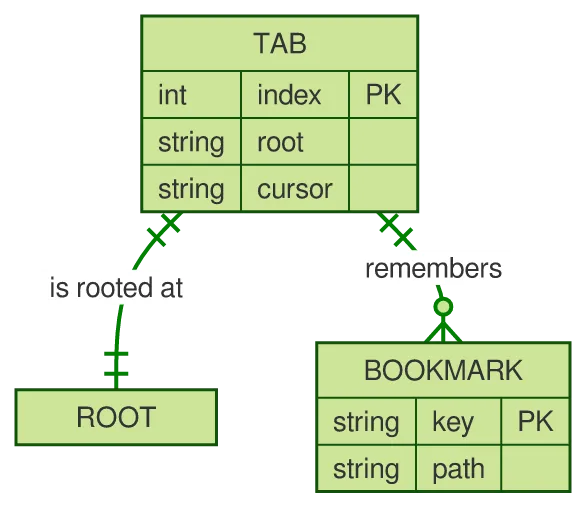

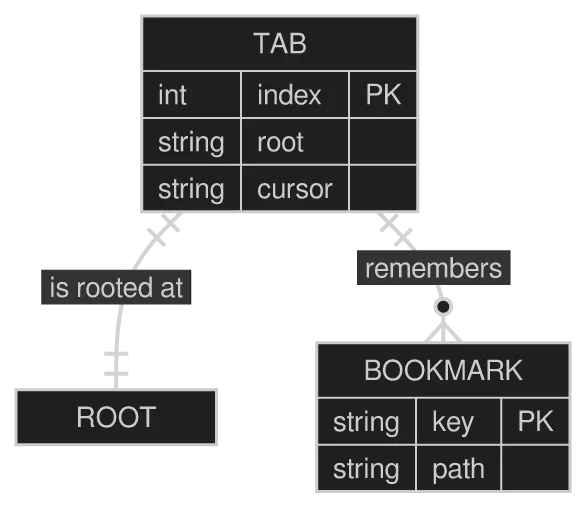

erDiagram — entities and how many of each
Section titled “erDiagram — entities and how many of each”The crow’s-foot marks are the point: || is exactly one, o{ is zero or more.
An entity can carry an attribute block with types and PK/FK keys.
Mermaid source
erDiagram
TAB ||--|| ROOT : is rooted at
TAB ||--o{ BOOKMARK : remembers
TAB {
int index PK
string root
string cursor
}
BOOKMARK {
string key PK
string path
}mermaid_theme
Section titled “mermaid_theme”
Interactions

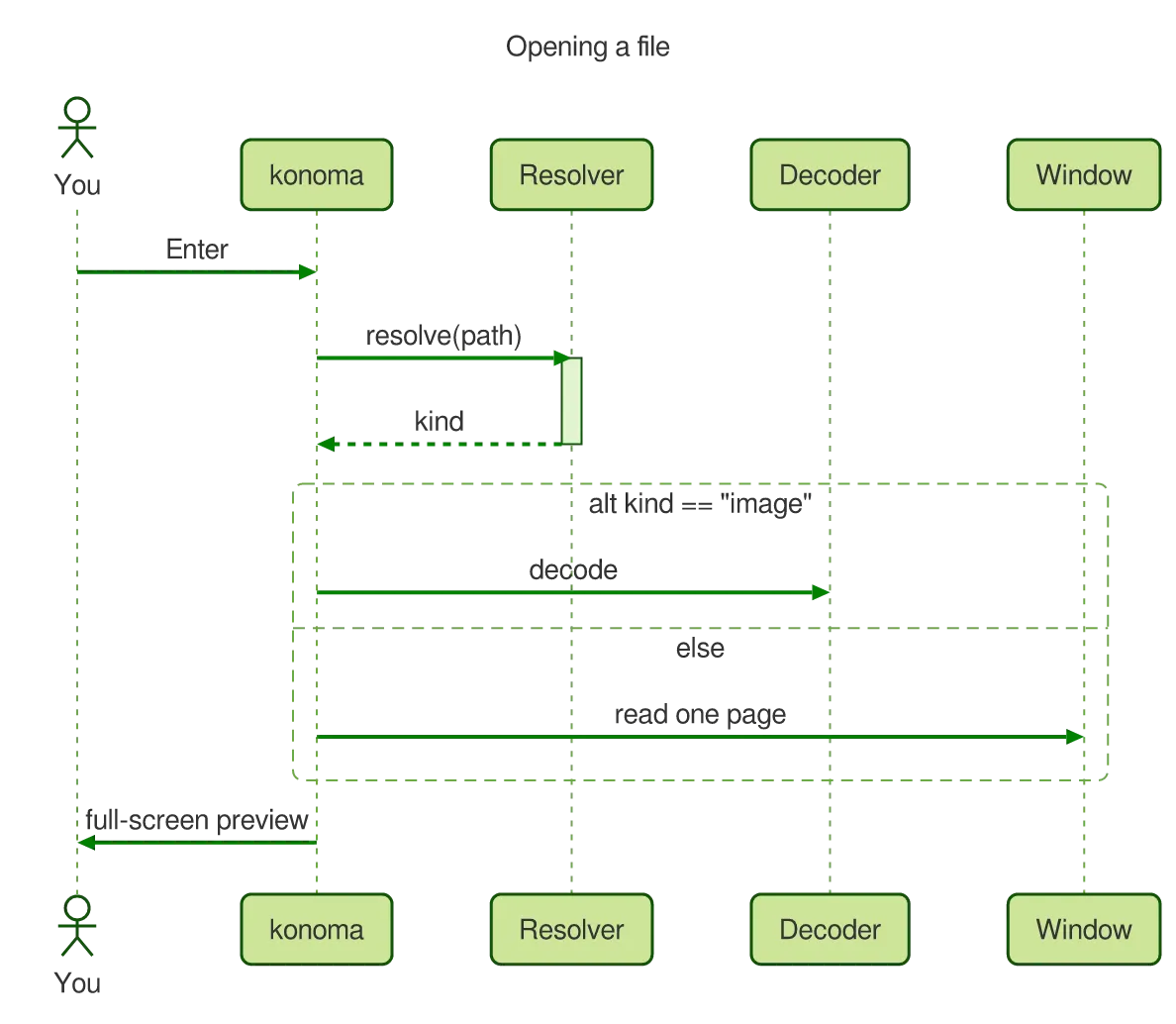

Section titled “Interactions”sequenceDiagram — who says what, in order
Section titled “sequenceDiagram — who says what, in order”Time runs down the page: an actor, an activation bar (+ … deactivate) for
the worker thread being busy, and an alt block for the branch every terminal
takes differently.
Mermaid source
sequenceDiagram
actor You
participant K as konoma
participant W as Worker
You->>K: Enter on a .png
K->>+W: decode off the UI thread
alt kitty graphics
W-->>K: compressed RGBA
else no protocol
W-->>K: half blocks
end
deactivate W

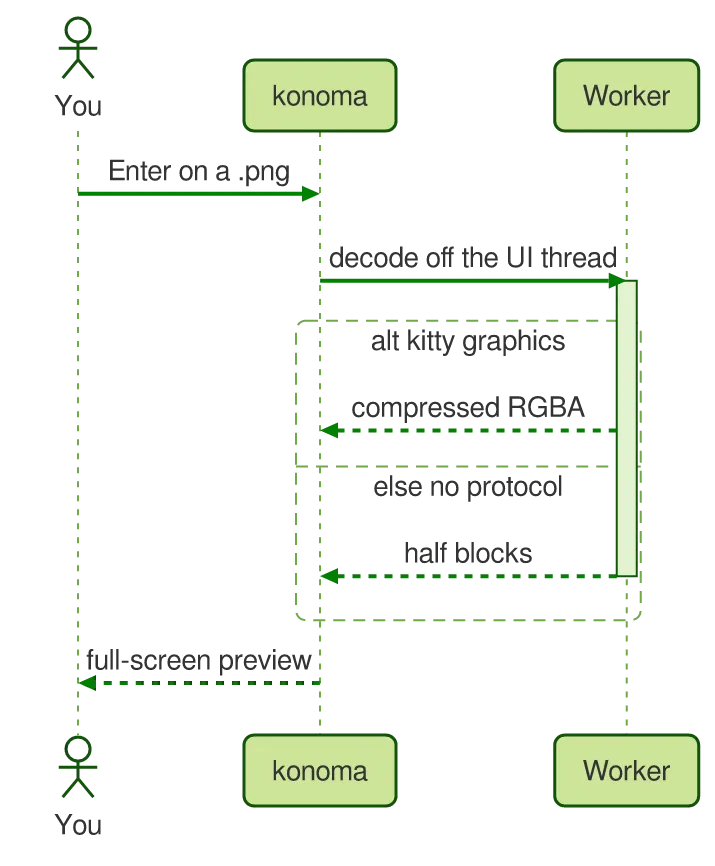

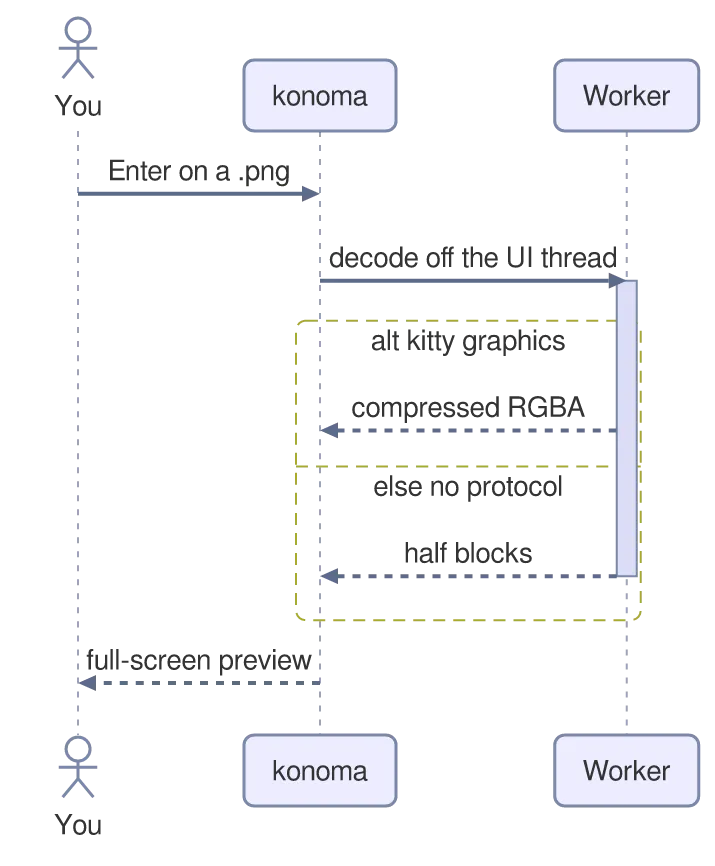

K-->>You: full-screen previewmermaid_theme
Section titled “mermaid_theme”

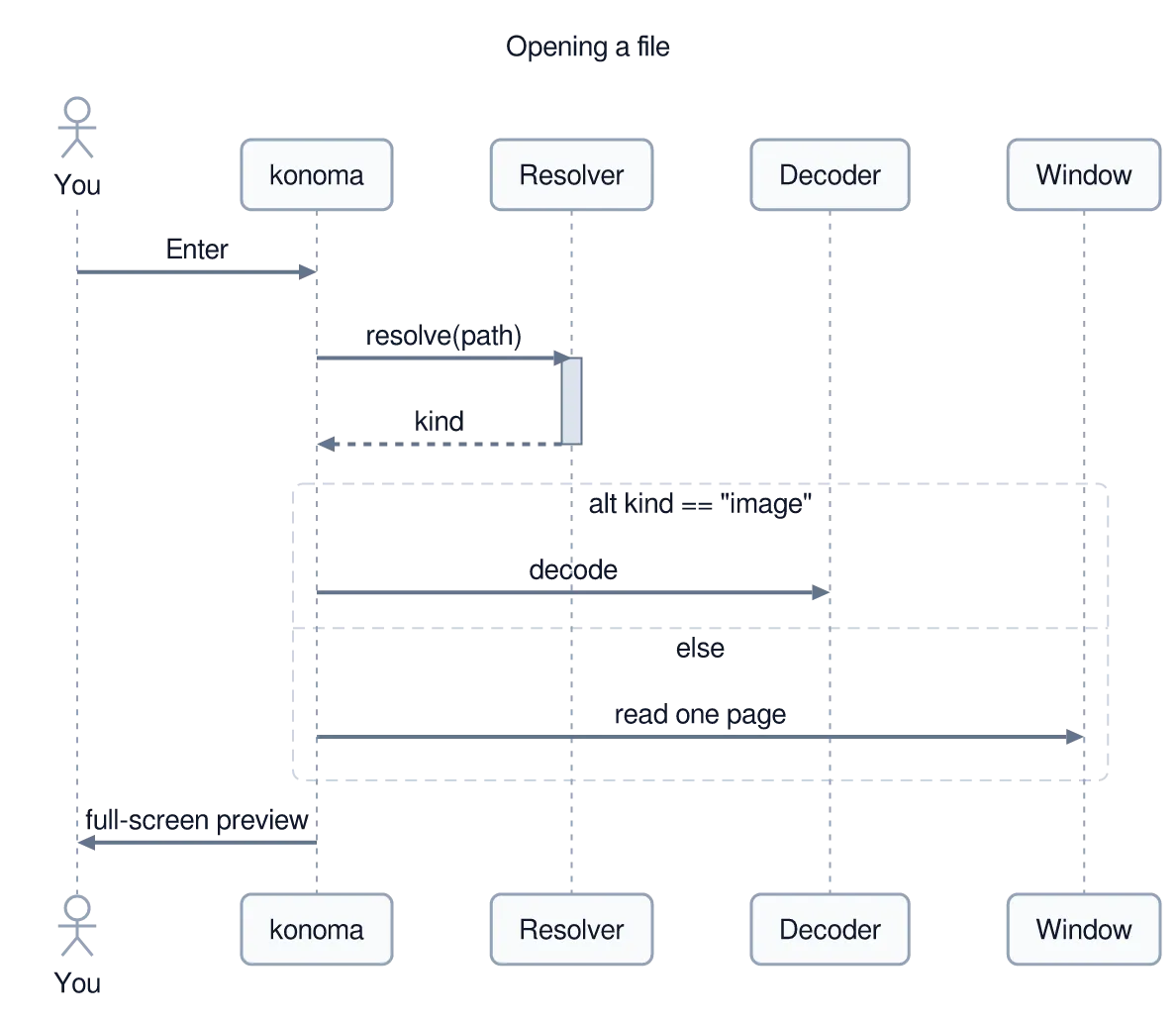

zenuml — the same story, written as code
Section titled “zenuml — the same story, written as code”ZenUML describes an interaction as nested calls rather than as arrows. A block
with { … } is the callee doing work, and if/else reads as it would in a
program.
Mermaid source
zenuml
title Opening a file
@Actor You
You->konoma: Enter
konoma->Resolver.resolve(path) {
return kind
}
if(kind == "image") {
konoma->Decoder: decode
} else {
konoma->Window: read one page
}
konoma->You: full-screen previewmermaid_theme
Section titled “mermaid_theme”
Trees and boards

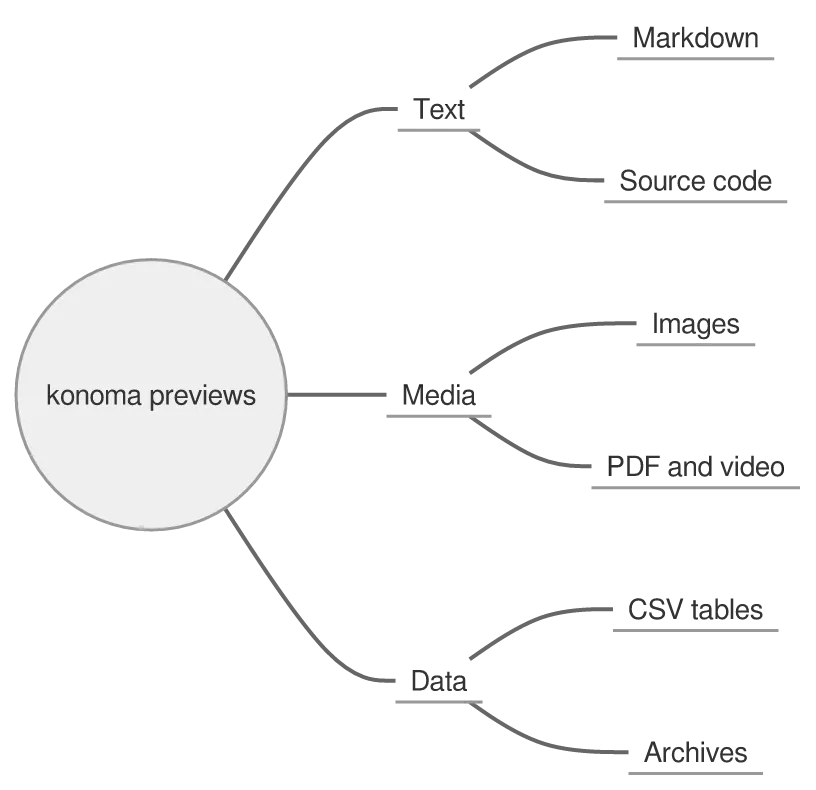

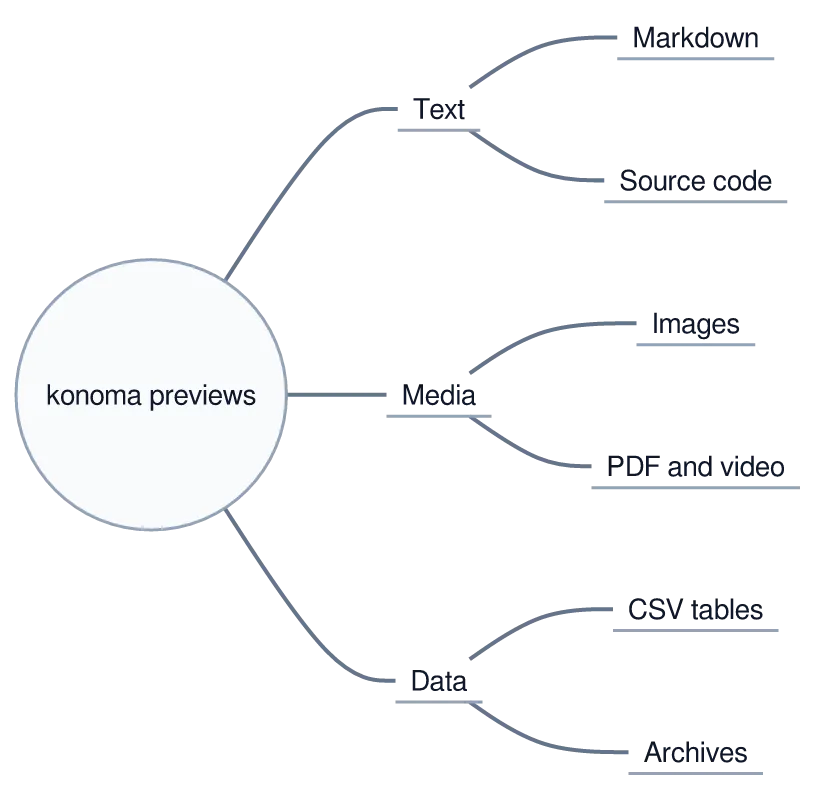

Section titled “Trees and boards”mindmap — one idea, branching
Section titled “mindmap — one idea, branching”Written as indentation alone. konoma lays a mindmap out left to right rather than radially, because a radial layout puts half the labels on the wrong side of the line in a terminal.
Mermaid source
mindmap
root((konoma previews))
Text
Markdown
Source code
Media
Images
PDF and video
Data
CSV tables

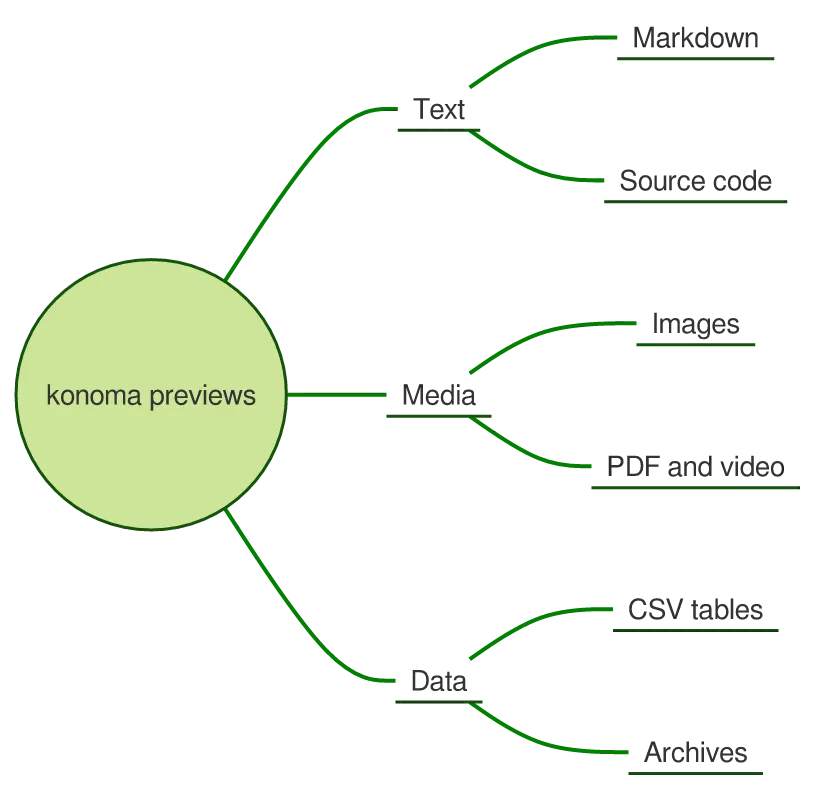

Archivesmermaid_theme
Section titled “mermaid_theme”

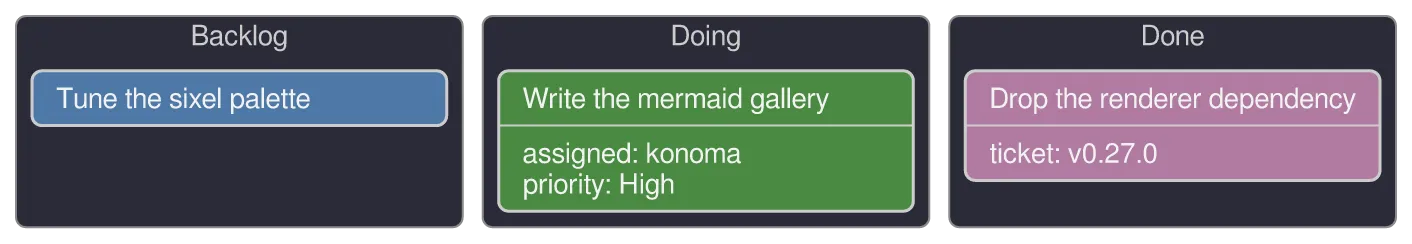

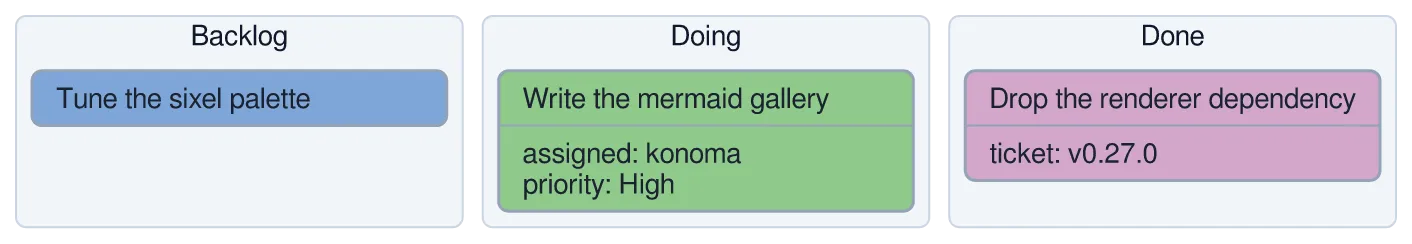

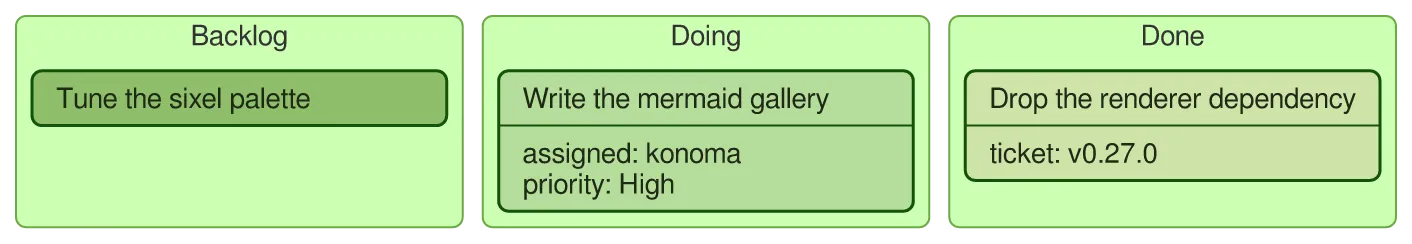

kanban — columns of cards
Section titled “kanban — columns of cards”Columns come from the first indent level, cards from the second. @{ … }
attaches metadata to a card — assignee, priority, ticket.
Mermaid source
kanban
Backlog
k1[Tune the sixel palette]
Doing
k2[Write the mermaid gallery]@{ assigned: 'konoma', priority: 'High' }
Done

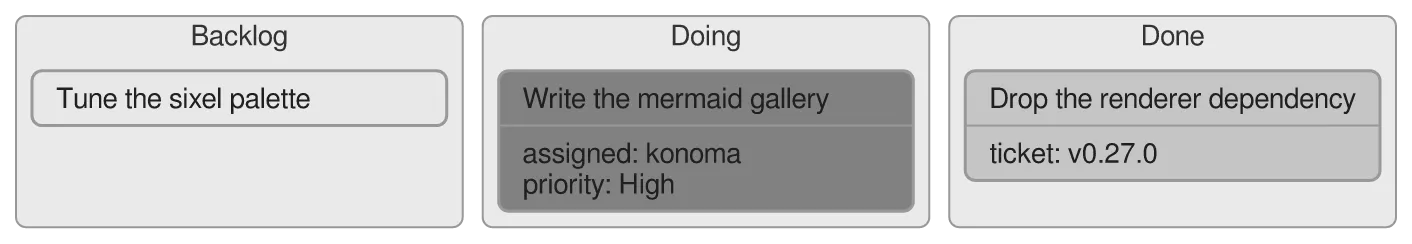

k3[Drop the renderer dependency]@{ ticket: 'v0.27.0' }mermaid_theme
Section titled “mermaid_theme”
journey — how a task actually feels
Section titled “journey — how a task actually feels”Each step gets a score from 1 to 5, drawn as a face, and the people involved after the score. Sections band the day.
Mermaid source
journey
title A morning of pair programming
section Read
Skim the diff: 4: Me, Agent
Open the failing file: 5: Me
section Fix
Find the real cause: 2: Me
Watch the tests go green: 5: Me, Agentmermaid_theme
Section titled “mermaid_theme”

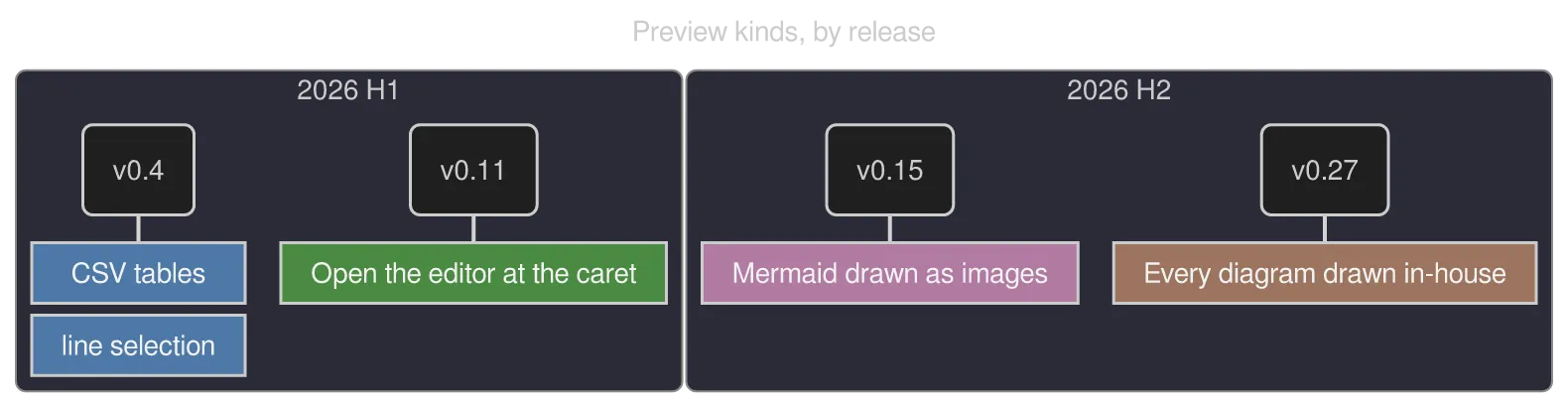

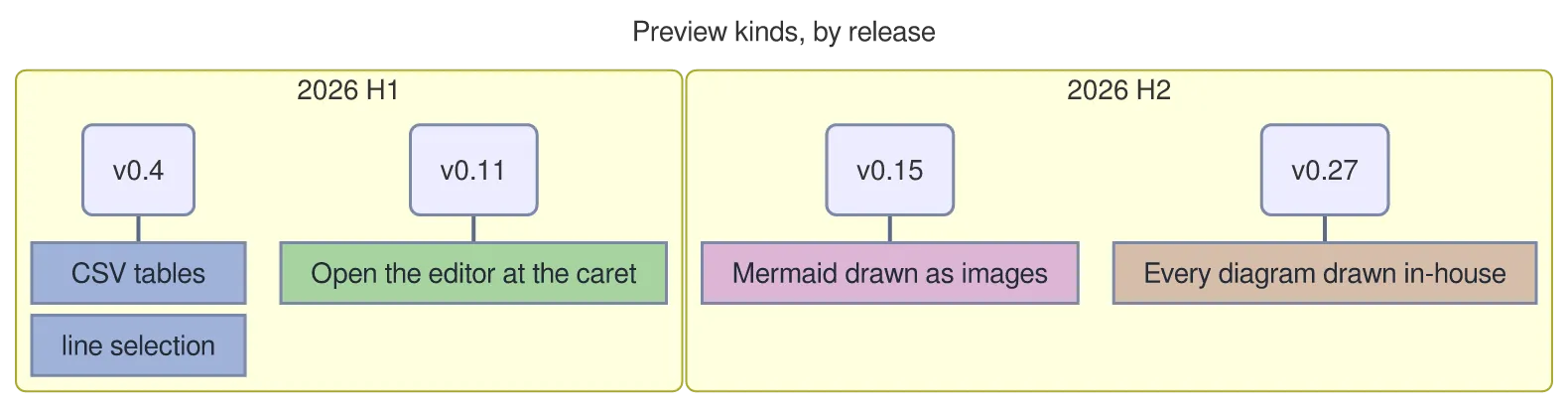

timeline — what happened when

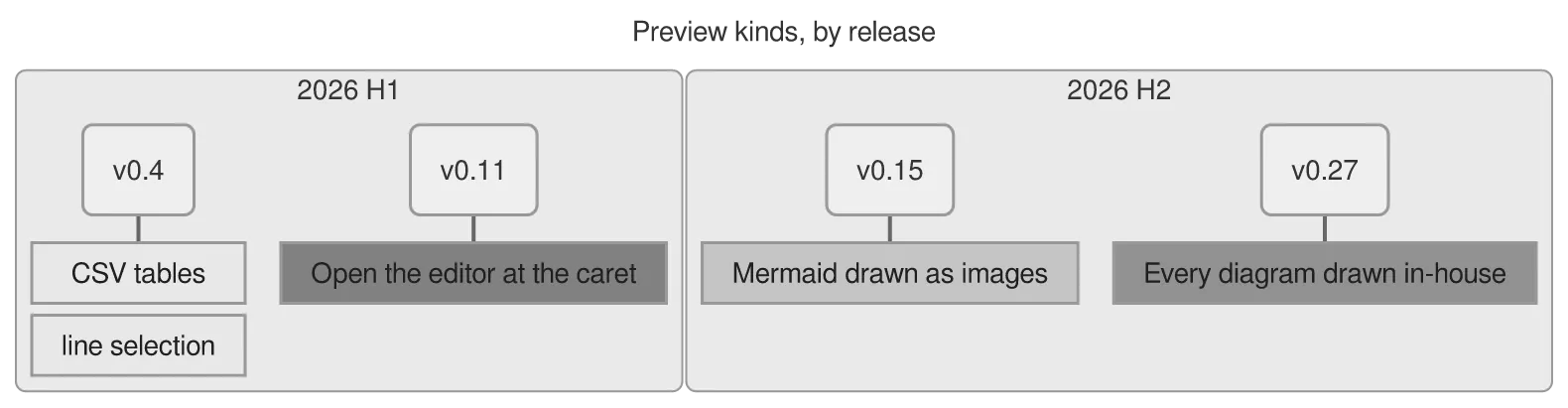

Section titled “timeline — what happened when”Periods on the left, events on the right; section bands them. A period can
carry several events separated by :.
Mermaid source
timeline
title Preview kinds, by release
section 2026 H1
v0.4 : CSV tables : line selection
v0.11 : Open the editor at the caret
section 2026 H2
v0.15 : Mermaid drawn as images

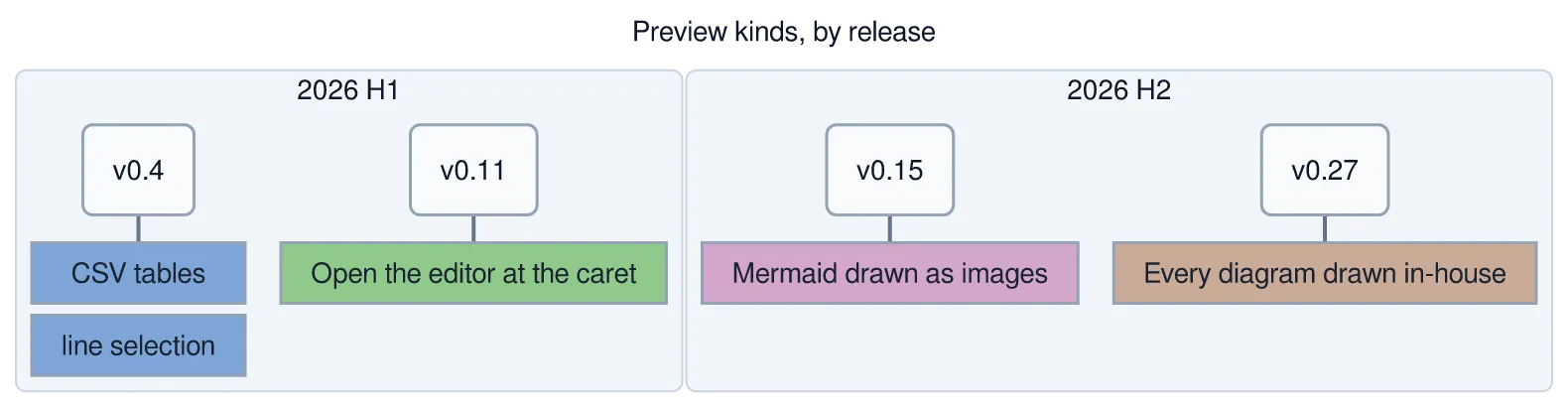

v0.27 : Every diagram drawn in-housemermaid_theme
Section titled “mermaid_theme”

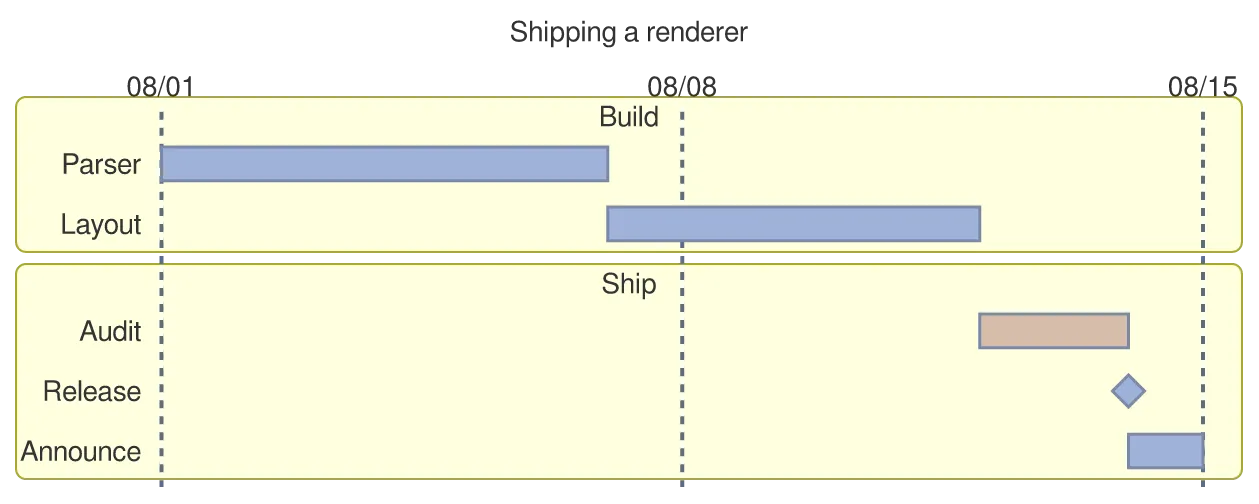

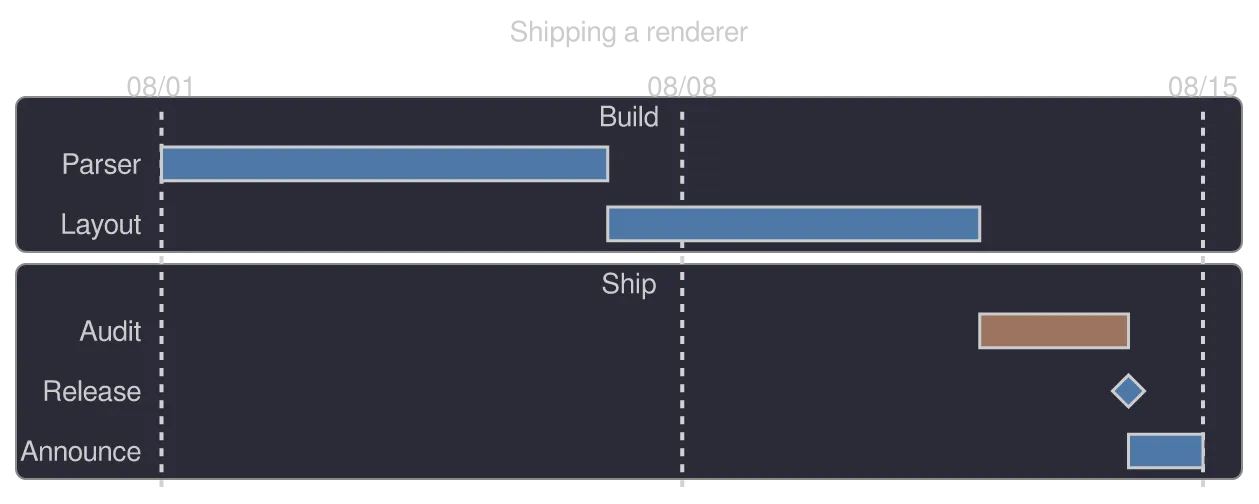

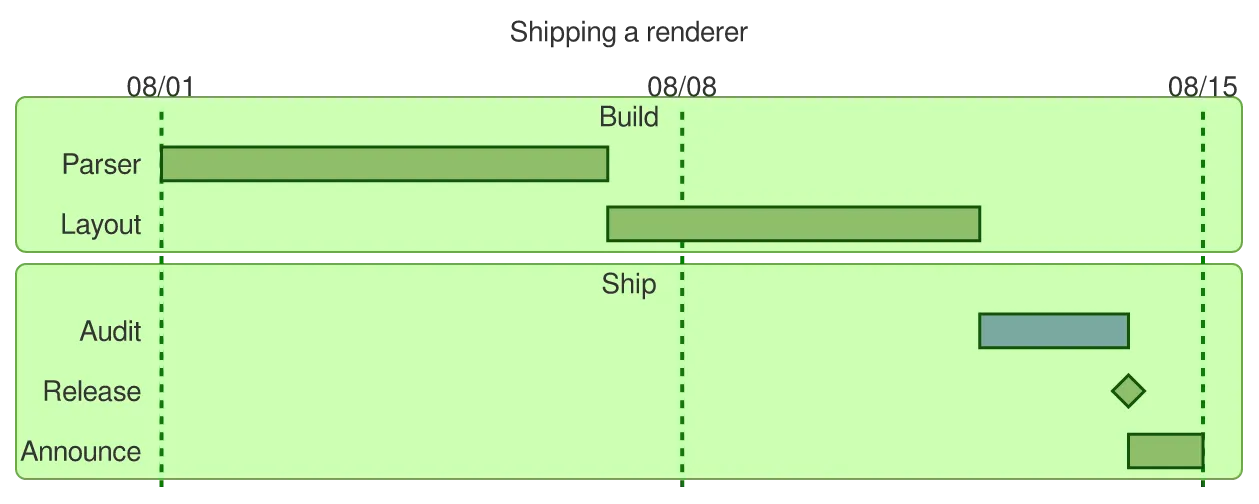

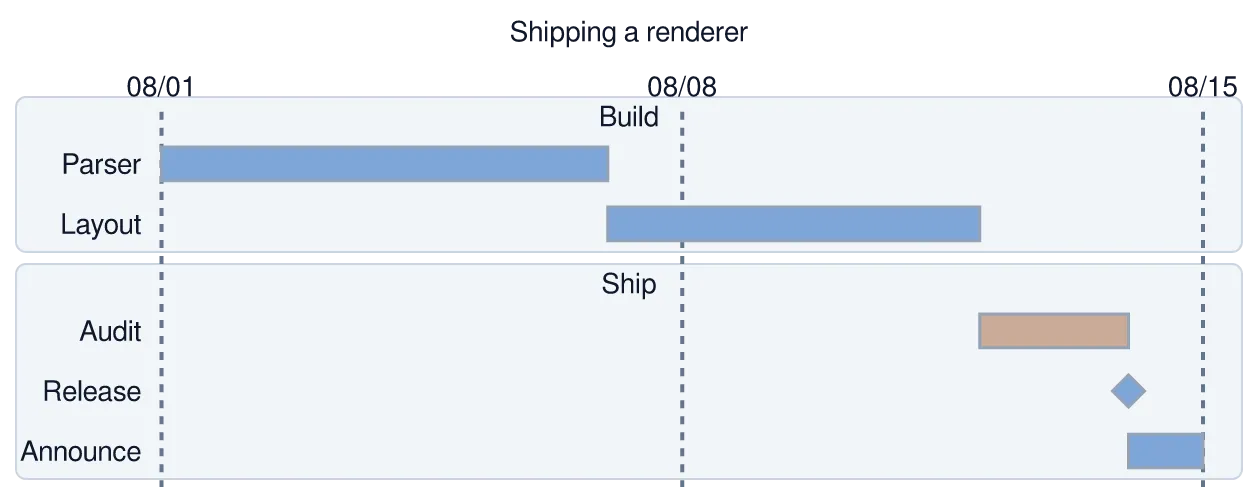

gantt — bars against a calendar
Section titled “gantt — bars against a calendar”Note the section bands, the after dependency that chains one bar to the end
of another, the crit tag, and the milestone drawn as a diamond.
Mermaid source
gantt
title Shipping a renderer
dateFormat YYYY-MM-DD
axisFormat %m/%d
section Build
Parser :p1, 2026-08-01, 6d
Layout :after p1, 5d
section Ship
Audit :crit, a1, 2026-08-12, 2d
Release :milestone, m1, after a1, 0d
Announce :after m1, 1dmermaid_theme
Section titled “mermaid_theme”
Structure

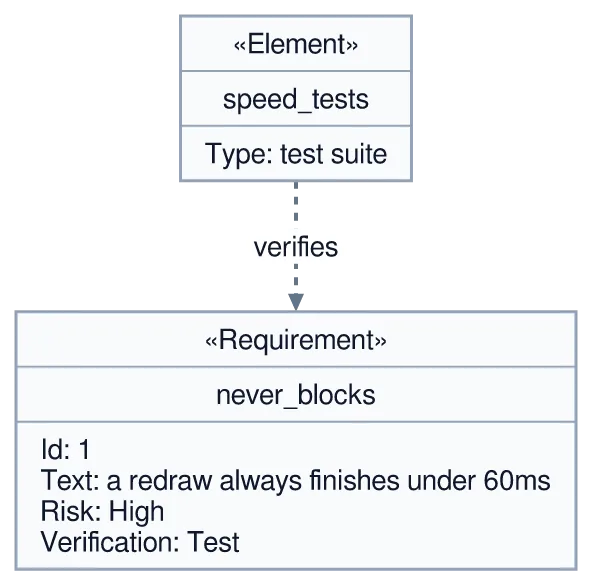

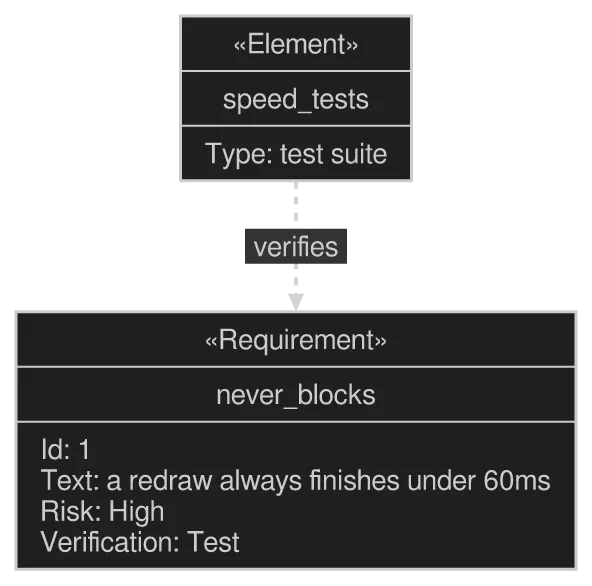

Section titled “Structure”requirementDiagram — what must hold, and what proves it
Section titled “requirementDiagram — what must hold, and what proves it”A requirement carries an id, a text, a risk and a verification method; an element is the thing that satisfies or verifies it.
Mermaid source
requirementDiagram
requirement never_blocks {
id: 1
text: a redraw always finishes under 60ms
risk: high
verifymethod: test
}
element speed_tests {
type: test suite
}
speed_tests - verifies -> never_blocksmermaid_theme
Section titled “mermaid_theme”
gitGraph — branches and merges
Section titled “gitGraph — branches and merges”Commits run along a lane; branch opens a new one, checkout moves between
them, and merge brings one back. Tags sit above the commit they mark.
Mermaid source
gitGraph
commit id: "v0.26.5"
branch renderer
commit id: "parser"
commit id: "layout"
checkout main
merge renderer tag: "v0.27.0"mermaid_theme
Section titled “mermaid_theme”

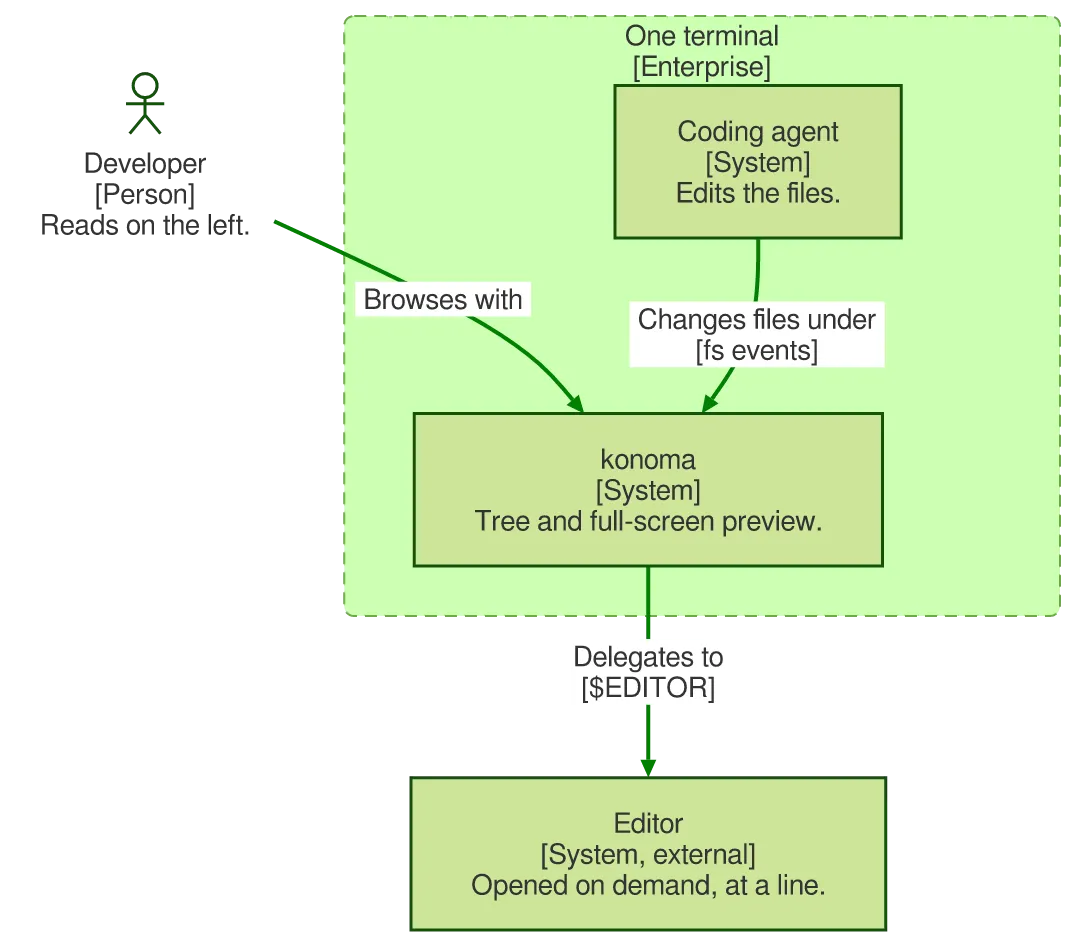

C4Context — systems, people and boundaries

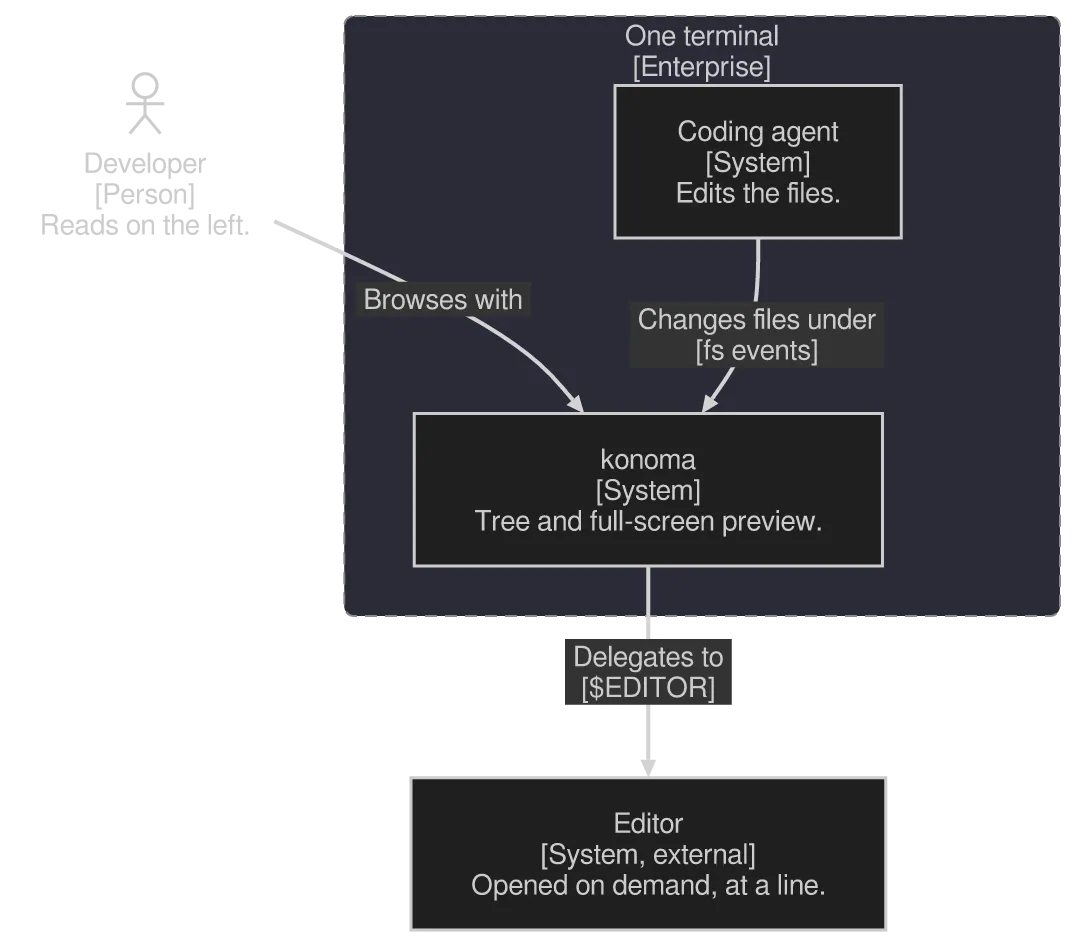

Section titled “C4Context — systems, people and boundaries”The C4 vocabulary: a Person, a System we own, a System_Ext we do not, and
a boundary drawn around what is ours. Relations can carry a technology as a
second label.
Mermaid source
C4Context
title konoma in an AI pair-programming setup
Person(dev, "Developer", "Reads on the left.")
Enterprise_Boundary(term, "One terminal") {
System(konoma, "konoma", "Tree and full-screen preview.")
System(agent, "Coding agent", "Edits the files.")
}
System_Ext(editor, "Editor", "Opened on demand, at a line.")
Rel(dev, konoma, "Browses with")
Rel(agent, konoma, "Changes files under", "fs events")
Rel(konoma, editor, "Delegates to", "$EDITOR")mermaid_theme
Section titled “mermaid_theme”
block-beta — a grid you place things on
Section titled “block-beta — a grid you place things on”Unlike a flowchart, columns decides the shape: it says how many cells a row
holds, :n widens a block across several, and a block: frame nests a grid
inside a cell.
Mermaid source
block-beta
columns 2
ui["Tree and preview UI"]:2
block:workers:1
columns 1
img["image decode"]
git["git status"]
end
cache[("cache")]
ui --> workers
workers --> cachemermaid_theme
Section titled “mermaid_theme”
architecture-beta — services, groups and which side a wire leaves from
Section titled “architecture-beta — services, groups and which side a wire leaves from”Every edge names the side it leaves and the side it arrives on (R right, L
left, T top, B bottom), so the picture is stated rather than inferred.
Mermaid source
architecture-beta
group term(cloud)[Terminal]
service tree(server)[Tree] in term
service prev(server)[Preview] in term
service repo(database)[Git repo]
service cache(disk)[Image cache]
tree:R --> L:prev
tree:B --> T:repo
prev:B --> T:cachemermaid_theme
Section titled “mermaid_theme”
pie — parts of a whole
Section titled “pie — parts of a whole”showData prints the raw number beside each label as well as the share.
Mermaid source
pie showData
title Where one full-screen image redraw goes (ms)
"Terminal transfer" : 31
"Image decode" : 12
"Layout" : 4
"Everything else" : 3mermaid_theme
Section titled “mermaid_theme”
xychart-beta — bars and lines on the same axes
Section titled “xychart-beta — bars and lines on the same axes”Two series over one x-axis: a bar for what was measured, a line for what was budgeted.
Mermaid source
xychart-beta
title "Diagram layout time"
x-axis [flow, state, class, er, seq]
y-axis "microseconds" 0 --> 1200
bar "measured" [90, 140, 260, 300, 880]
line "budget" [1000, 1000, 1000, 1000, 1000]mermaid_theme
Section titled “mermaid_theme”
quadrantChart — two axes, four verdicts
Section titled “quadrantChart — two axes, four verdicts”Points are placed by [x, y] in the unit square, and each quadrant gets a name.
Mermaid source
quadrantChart
title Preview kinds by cost and demand
x-axis Cheap --> Expensive
y-axis Rare --> Common
quadrant-1 Worth the work
quadrant-2 Quick wins
quadrant-3 Someday
quadrant-4 Think twice
Markdown: [0.62, 0.78]
Images: [0.8, 0.62]
CSV: [0.34, 0.3]
Archives: [0.2, 0.12]mermaid_theme
Section titled “mermaid_theme”
radar-beta — several things scored on the same axes
Section titled “radar-beta — several things scored on the same axes”One closed curve per subject over shared axes — the shape is the comparison.
Mermaid source
radar-beta
title What a terminal can do
axis img["Images"], vid["Video"], spd["Speed"], col["Colour"]
curve k["kitty graphics"]{5, 5, 5, 4}
curve s["sixel"]{4, 3, 3, 4}
curve h["half blocks"]{2, 2, 4, 3}
max 5
min 0mermaid_theme
Section titled “mermaid_theme”
treemap-beta — nested boxes sized by value
Section titled “treemap-beta — nested boxes sized by value”Area is the number. Indentation nests, so a section’s box is as big as its leaves put together.
Mermaid source
treemap-beta
"src"
"preview": 21
"app": 14
"docs"
"PRD": 9
"STATUS": 5mermaid_theme
Section titled “mermaid_theme”
packet-beta — bit fields laid out in rows
Section titled “packet-beta — bit fields laid out in rows”Ranges are bit offsets, so a wide field really is drawn wide.
Mermaid source
packet-beta
0-7: "Magic"
8-11: "Version"
12-15: "Flags"
16-47: "Payload length"
48-63: "Checksum"mermaid_theme
Section titled “mermaid_theme”
sankey-beta — flow that splits and keeps its width

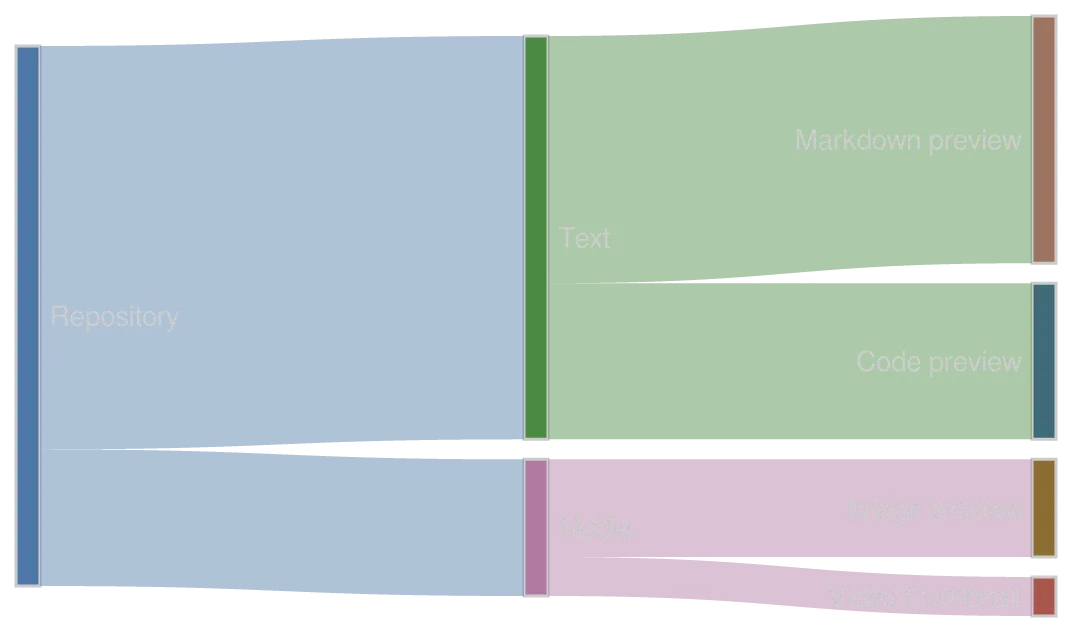

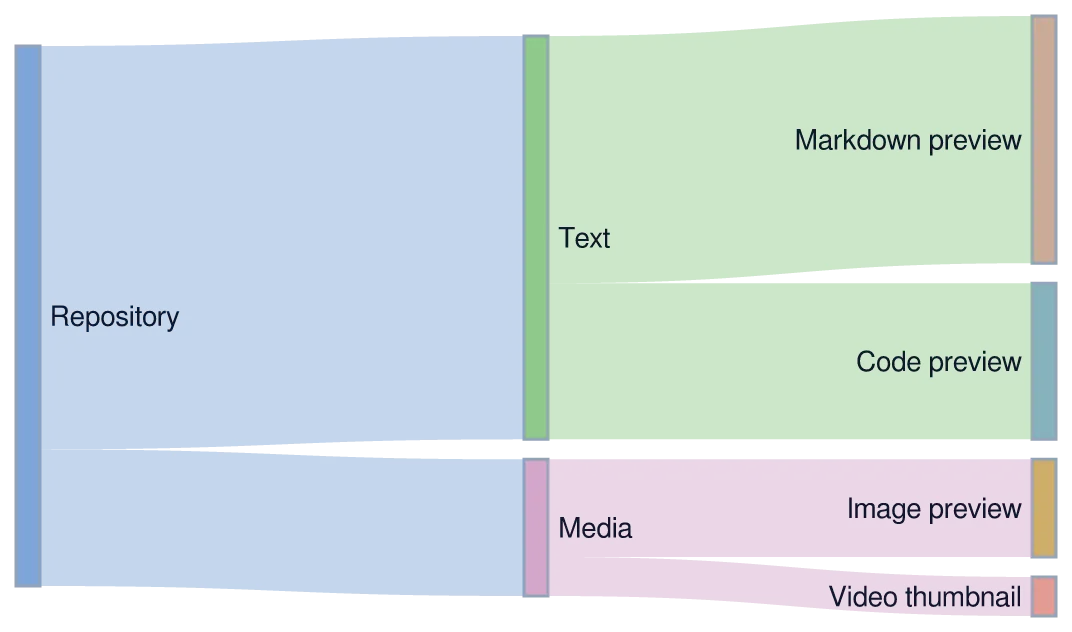

Section titled “sankey-beta — flow that splits and keeps its width”Comma-separated source,target,value. The band widths stay proportional as the
flow divides.
Mermaid source
sankey-beta
Repository,Text,62
Repository,Media,21
Text,Markdown preview,38
Text,Code preview,24
Media,Image preview,15
Media,Video thumbnail,6mermaid_theme
Section titled “mermaid_theme”
If konoma cannot draw it
Section titled “If konoma cannot draw it”Nothing is invented. A kind konoma does not know, or a syntax error, falls back to the source shown as text.
mermaid = "text"
Section titled “mermaid = "text"”ui.mermaid = "text" asks for the Unicode box-drawing rendering everywhere,
which is also what a terminal with no graphics protocol gets. It is text, not a
picture, so this is the drawing itself rather than a screenshot of it:
┌──────────────┐
▸│ Move or open │──────────┐
Tree└──────────────┘ │
╭─────────────╮ ╱────────────────╲──────┘ ▸┌────────┐
( Key press )──────▸│ Which surface? │ Preview │ Redraw │
╰─────────────╯ ╲────────────────╱──────┐ ▸└────────┘
│┌──────────────────┐ │
▸│ Scroll or search │──────┘
└──────────────────┘ ┌───────┐ ┌──────────┐ ┌──────────┐
│ You │ │ konoma │ │ Worker │
└───────┘ └──────────┘ └──────────┘
┆ Enter on a .png ┆ ┆
───────────────────────────────▸ ┆
┆ ┆ decode off the UI thread ██
┆ ──────────────────────────────────────▸█
┆ ┆ ██
┆ ╔═[alt]══[kitty graphics]═══════════════════════════╗
┆ ║░░░░░░┆░compressed░RGBA░░░░░░░░░░░░░░░░░░░░░██░░░░░║
┆ ║░░░░░░◂┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄█░░░░░║
┆ ║░░░░░░┆░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░██░░░░░║
┆ ╠┄[no protocol]┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄╣
┆ ║░░░░░░┆░half░blocks░░░░░░░░░░░░░░░░░░░░░░░░░██░░░░░║
┆ ║░░░░░░◂┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄█░░░░░║
┆ ║░░░░░░┆░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░┆░░░░░░║
┆ ╚═══════════════════════════════════════════════════╝
┆ full-screen preview ┆ ┆
◂┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄┄ ┆
┆ ┆ ┆
┌───────┐ ┌──────────┐ ┌──────────┐
│ You │ │ konoma │ │ Worker │
└───────┘ └──────────┘ └──────────┘
